Secondary Speed Sensor: Removal

CAUTION: If water or oil contacts the connector terminal of secondary speed sensor, replace it with a new part.
  1. Disconnect the ground terminal from battery sensor, Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>REMOVAL .

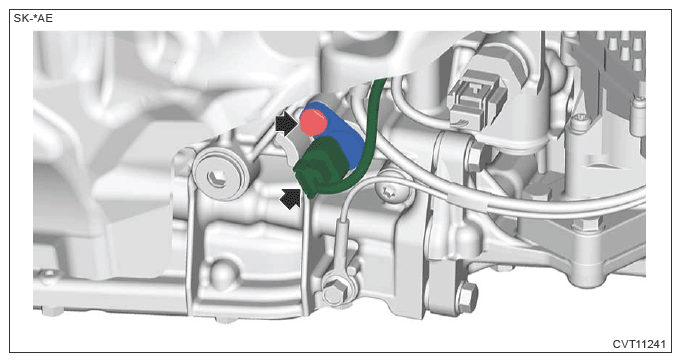

  3. Disconnect the connector and remove the secondary speed sensor.
    NOTE: Prepare the container for draining of engine oil.
    G13225702Courtesy of SUBARU OF AMERICA, INC.
