Torque Converter: Removal

  1. Remove the transmission body, Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Assembly>REMOVAL .
  2. Remove the ST from converter case.
    G13224276Courtesy of SUBARU OF AMERICA, INC.

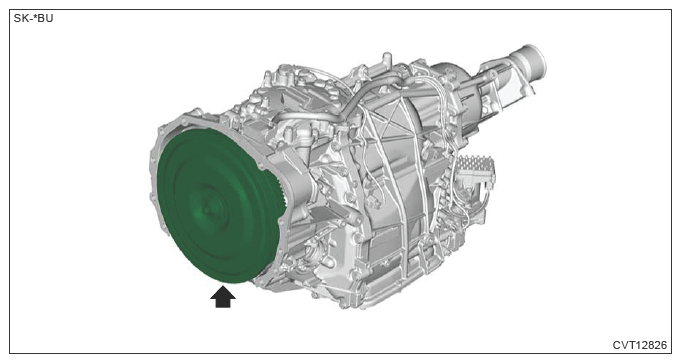

  3. Pull out the torque converter horizontally.
    CAUTION: Do not scratch the inside of engaging parts.
    G13592140Courtesy of SUBARU OF AMERICA, INC.

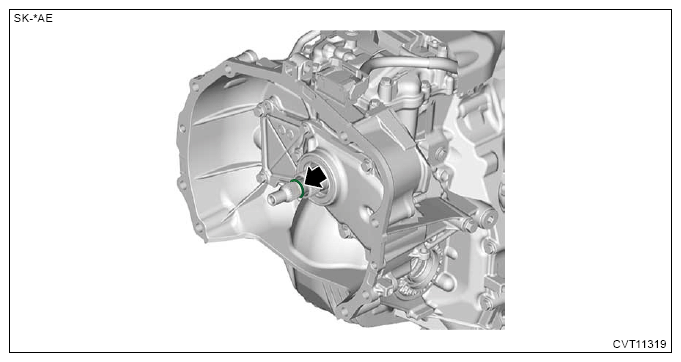

  4. Remove the O-ring from the input shaft.
    G13225796Courtesy of SUBARU OF AMERICA, INC.
