Transfer Clutch: Removal

  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Assembly>REMOVAL .
  2. Remove the electric oil pump. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Electric Fluid Pump>REMOVAL
  3. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Extension Case>REMOVAL

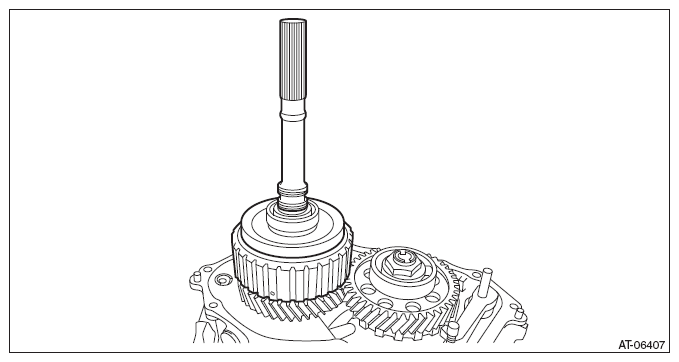

  4. Remove the transfer clutch.
    G08317898Courtesy of SUBARU OF AMERICA, INC.

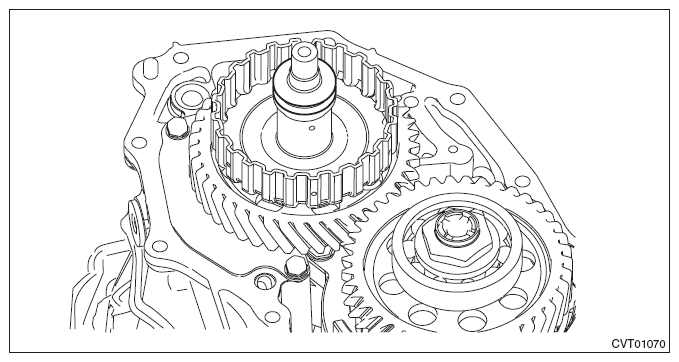

  5. Remove the thrust bearing.
    G10218703Courtesy of SUBARU OF AMERICA, INC.

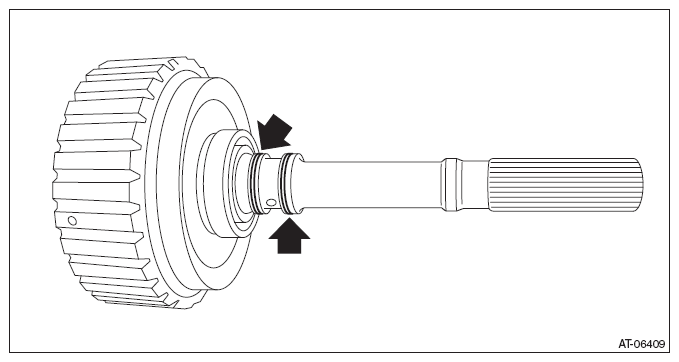

  6. Remove the seal rings.
    G08317900Courtesy of SUBARU OF AMERICA, INC.

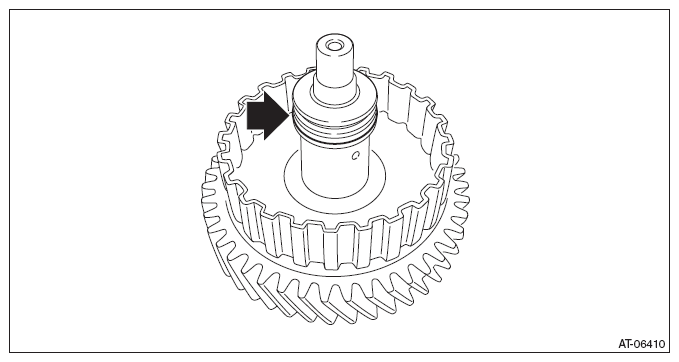

  7. Remove the seal rings.
    G08317901Courtesy of SUBARU OF AMERICA, INC.
