Transfer Driven Gear: Disassembly

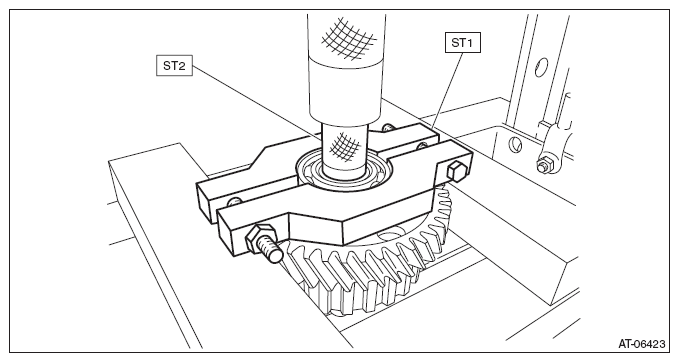

Remove the ball bearing using ST1, ST2 and a press.
Preparation tool:

ST1: REMOVER (498077400)

ST2: REMOVER (899864100)

Courtesy of SUBARU OF AMERICA, INC.
