Entertainment System: Camera: Inspection: Rear

Park the vehicle at the level place where there are enough area at the rear of the vehicle.

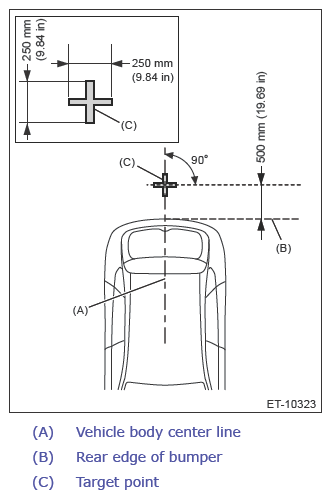

Attach the tape as the target point for standard at the floor rearward of the vehicle as shown in the figure below.
NOTE: Standard tape width is about 30 - 50 mm (1.18 - 1.97 in) and brilliant color shall be used.

Courtesy of SUBARU OF AMERICA, INC.
Confirm the following before checking the corresponding items.
1. Rearview camera image is not displayed. (Everything except for the camera screen is displayed properly.)
  1. Check the reverse signal with the {Vehicle Signal} screen in the Line Diag mode. Ref. to COCKPIT CONTROL (DIAGNOSTICS)>SERVICE DIAGNOSTICS MODE>OPERATION>SERVICE INSPECTION .
  2. Check the rear view camera connection status with the {Connection} screen in the Line Diag mode. Ref. to COCKPIT CONTROL (DIAGNOSTICS)>SERVICE DIAGNOSTICS MODE>OPERATION>SERVICE INSPECTION .
2. The guide line is not displayed, or the guide line position is not aligned.
  The rearview camera or its installation location on the vehicle may be deformed. Check the rearview camera and its installation location on the vehicle, and repair or replace if necessary.
