View Button

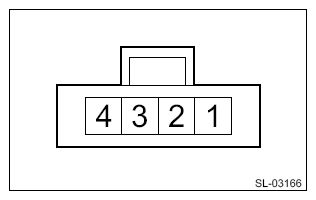

Measure the resistance between connector terminals.

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions	Standard
1 - 4	Switch OFF	1 MΩ or more
1 - 4	Switch ON	Less than 1 Ω

Apply battery voltage between the connector terminals to check lighting condition of illumination inside the switch.

CAUTION: When applying battery voltage, do not mix up the positive (+) side and the negative (-) side.
Incorrect polarity connection may cause LED damage inside the switch.

Terminal No.	Inspection conditions	Specification
2 (+) - 3 (-)	Apply battery voltage.	Light On

Replace the switch assembly VIEW if it is found defective.
