Front Fog Light Assembly: Installation

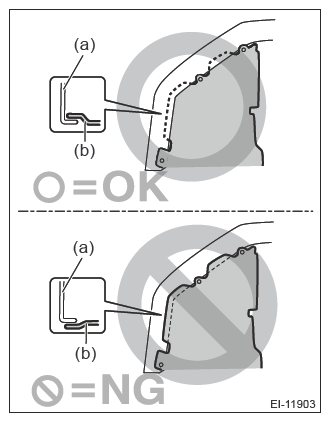

NOTE: Install the mud guard so that the front end of the mud guard (b), except for the clip fixing point, comes inside the bumper face (a).

Courtesy of SUBARU OF AMERICA, INC.

Install the fog light assembly front.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Lower the vehicle.
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Adjust the fog light beam. Ref. to LIGHTING SYSTEM>FRONT FOG LIGHT ASSEMBLY>ADJUSTMENT>FOG LIGHT AIMING .
Install the mud guard front.
