Light Control Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the auto light sensor.
    NOTE: When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.

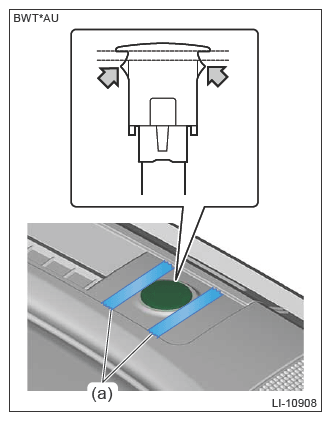

    1. Attach the protective tape (a).
    2. Disconnect the claws and then pull out the auto light sensor.
      G13951911Courtesy of SUBARU OF AMERICA, INC.
    3. Disconnect the connector and remove the auto light sensor.
