Outback Model

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

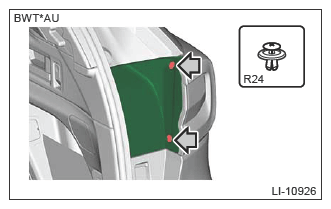

  2. Remove the cover assembly rear combination light.
    1. Remove the clip.
      G13951946Courtesy of SUBARU OF AMERICA, INC.

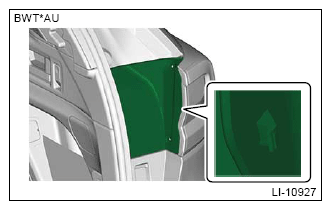

    2. Release the claws, and then remove the cover assembly rear combination light.
    CAUTION: Do not remove the cover forcibly if the cover is not unhooked. Doing so may result in damage of the cover claw or the light assembly rear combination.
    NOTE: When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.
    G13951947Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the light assembly rear combination.

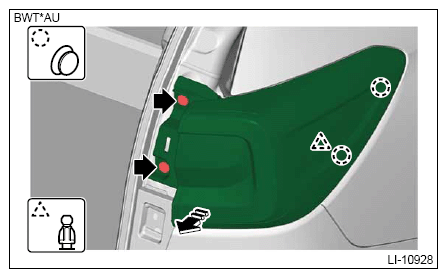

    1. Release the bolts and clips, then pull out the light assembly rear combination to the rear of the vehicle as shown in the figure.
      CAUTION: Be careful not to damage the clips.
      G13951948Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the light assembly rear combination.

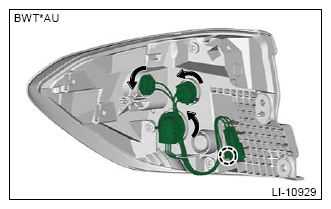

  4. Remove the cord assembly.
    1. Remove the connector clip.
    2. Remove the harness cover and disconnect the connector.
    3. Remove the bulb socket and remove the cord assembly.
G13951949Courtesy of SUBARU OF AMERICA, INC.
