Home >> Subaru >> 2021 >> Outback Base >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Anti-Theft System - Security And Locks >> General Description >> Components With Torque Specifications >> Rear Gate Lock

Rear Gate Lock

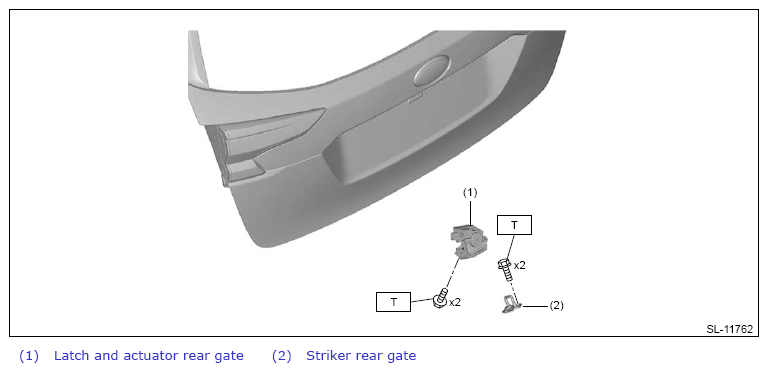

Fig 1: Rear Gate Lock Components

G13953413

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 25 (2.5, 18.4)
