Ignition Key Lock: Inspection

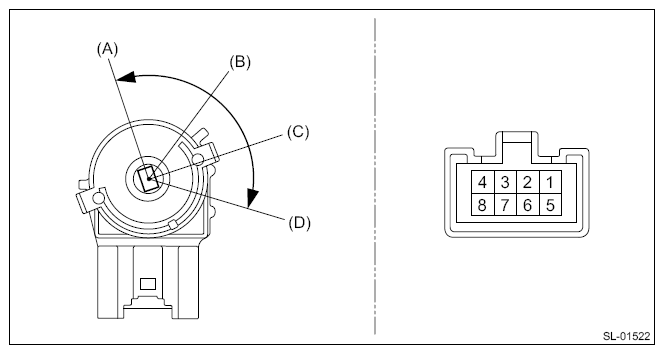

  1. Measure the resistance between connector terminals.
    G13953473Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Inspection conditions Standard
    Between all terminals (A) LOCK 1 MΩ or more
    2 - 4 (B) ACC Less than 1 Ω
    1 - 2 - 4 5 - 6 (C) ON Less than 1 Ω
    1 - 3 - 4
    5 - 6 - 7    		 (D) ST Less than 1 Ω
  2. Replace the ignition switch assembly if the inspection result is not within the standard.
