Keyless Transmitter Battery

CAUTION: To prevent static electricity damage to the keyless transmitter printed circuit board, touch the steel area of building with hand to discharge static electricity carried on body or clothes before disassembling the keyless transmitter.

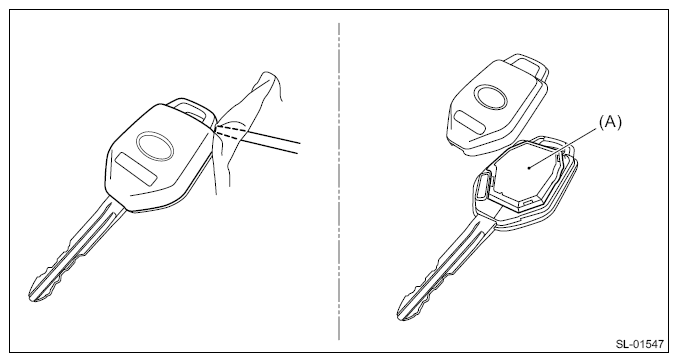

  1. Take out the transmitter case.
    1. Release the claws, and then remove the keyless transmitter cover.
      NOTE: Use a flat tip screwdriver with protective tape or cloth in order not to damage the components.
    2. Remove the transmitter case (A).
    G13953483Courtesy of SUBARU OF AMERICA, INC.

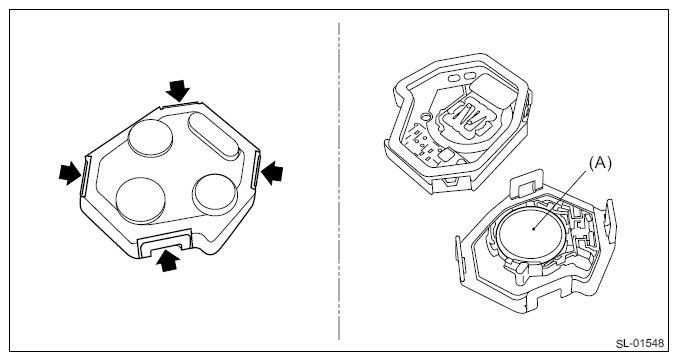

  2. Take out the keyless transmitter battery.
    1. Release the claws, and remove the transmitter case.
    2. Take out the keyless transmitter battery (A).
    CAUTION: When using a flat tip screwdriver, apply insulation tape around a flat tip screwdriver.
    G13953484Courtesy of SUBARU OF AMERICA, INC.
