Push Button Ignition Switch: Inspection

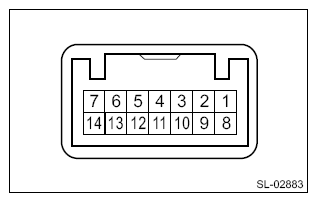

- Check the continuity between the connector terminals.
Terminal No. Inspection conditions Specification 4 (COM) - 5 (GND) Always Continuity exists 7 (SSW1) - 5 (GND) Push button ignition switch released → pressed Continuity exists 2 (SSW2) - 5 (GND) Push button ignition switch released → pressed Continuity exists - Check the push button start switch operation when battery voltage is applied between the connector terminals.CAUTION: When applying battery voltage, do not mix up the positive (+) side and the negative (-) side.
Incorrect polarity connection may cause LED damage inside the switch.Terminal No. Inspection conditions Specification 11 (SWIL) - 5 (GND) Connect battery to the terminals Turns off → Switch indicator lights in red 12 (INDS) - 5 (GND) Turns off → Switch indicator lights in green 13 (INDW) - 5 (GND) Turns off → Switch indicator lights in orange - Replace the push button start switch if it is found defective.
