Rear Lock Button: Inspection

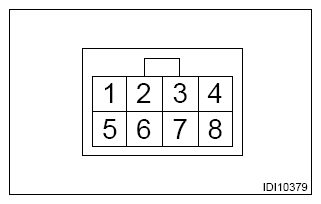

  1. Measure the resistance between connector terminals.
    G13953505Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Inspection conditions Standard
    3 - 4 When the switch is not pressed 1 MΩ or more
    When the switch is pressed Less than 5 Ω
  2. Replace the switch request (lock) if the inspection result is not within the standard value.
