Sedan Model

CAUTION:
  • Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  • Side impact sensor (under the rear center seat) for the airbag system is located under the front center of the rear seat cushion. Be careful not to apply strong impact to the sensor when working with the rear seat cushion removed.
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the pad rear side. Ref. to SEATS>REAR SEAT>REMOVAL .
  3. Remove the trunk trim panel side. Ref. to EXTERIOR/INTERIOR TRIM>TRUNK ROOM TRIM>REMOVAL .
  4. Remove the lever assembly rear backrest.

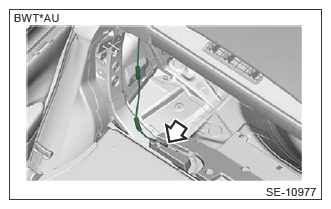

    1. Disconnect the wire.
      G13952341Courtesy of SUBARU OF AMERICA, INC.

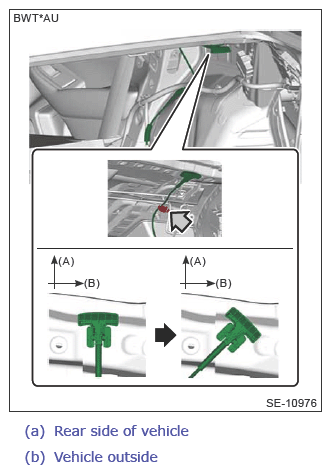

    2. Remove the clips and turn the lever assembly rear backrest by 45° as shown in the figure.
    3. Release the claws, and remove the lever assembly rear backrest.
G13952342Courtesy of SUBARU OF AMERICA, INC.
