Deflector Assembly

Install the deflector.
CAUTION: Pay attention to the orientation of the guide deflector.

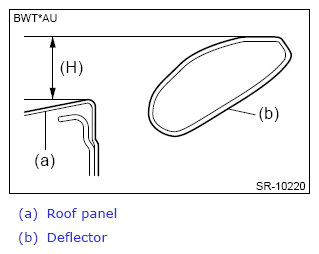

After installation, measure the height from the roof panel when deflector is activated.
Deflector to Roof panel (H):
- Sedan model: 12.3 mm (0.48 in)
- OUTBACK model: 14.2 mm (0.56 in)
Courtesy of SUBARU OF AMERICA, INC.
