Sunroof Assembly: Assembly

  1. Install the drain plate and the cable assembly.

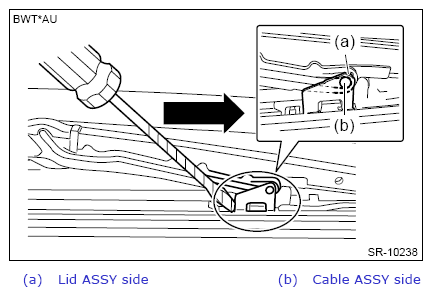

  2. Using a flat tip screwdriver wrapped with protective tape, move the cable assembly to the foremost position of the lid assembly.
    G13953548Courtesy of SUBARU OF AMERICA, INC.
  3. Install the shade assembly.
  4. Install the drain holder.
