Home >> Subaru >> 2021 >> Outback Base >> Repair and Diagnosis >> Body & Frame >> Windows >> Window Glass & Mirrors >> General Description >> Components With Torque Specifications >> Rear View Mirror

Rear View Mirror

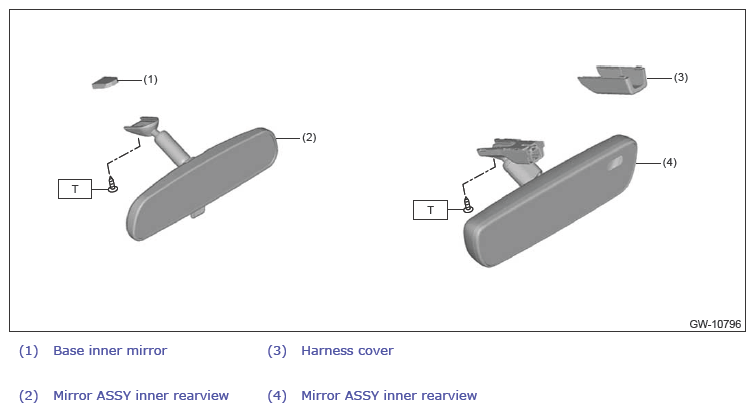

Fig 1: Rear View Mirror Components

G13953318

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 2.0 (0.2, 1.5)
