Check Switch Assembly EPB

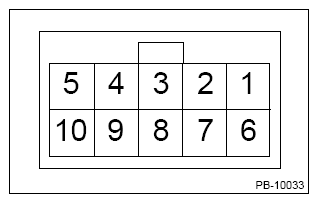

  1. Check the resistance between switch assembly EPB terminals.
    G13950164Courtesy of SUBARU OF AMERICA, INC.
    Switch position Terminal No. Standard
    Press
    (Release)    		 5 - 2
    5 - 4    		 Less than 1 Ω
    Neutral 5 - 1
    2 - 4    		 Less than 1 Ω
    Pull
    (Lock)    		 5 - 1
    5 - 2    		 Less than 1 Ω
  2. Replace the switch assembly EPB if the inspection result is not within the standard value.
