Home >> Subaru >> 2021 >> Outback Base >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Intake System (Induction) (2.5L) >> Air Intake Boot >> Removal

Air Intake Boot: Removal

  1. Remove the clips, and loosen the clamps.
    G13618350Courtesy of SUBARU OF AMERICA, INC.

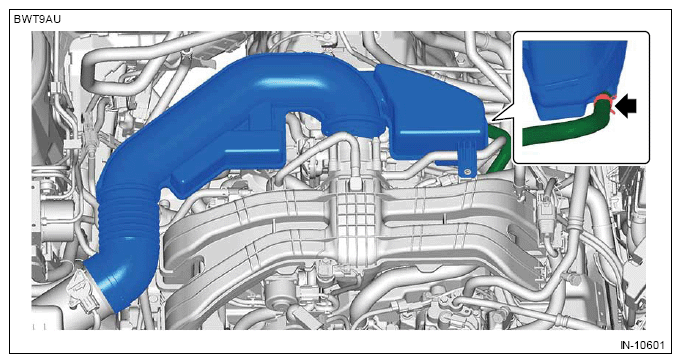

  2. Disconnect the PCV hose and remove the air intake boot.
G13618767Courtesy of SUBARU OF AMERICA, INC.
