Home >> Subaru >> 2021 >> Outback Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection System (2.5L) >> Camshaft Position Sensor >> Removal >> Intake Side >> • LH Side

• LH Side

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

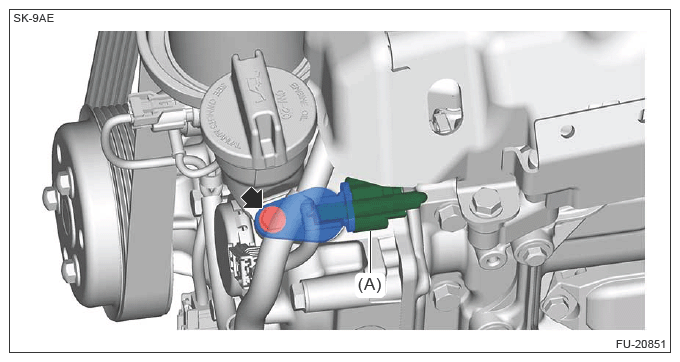

  2. Disconnect the connector (A) and remove the camshaft position sensor.
G13947195Courtesy of SUBARU OF AMERICA, INC.
