Home >> Subaru >> 2021 >> Outback Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection System (2.5L) >> Oil Control Solenoid >> Removal >> Intake >> • LH Side

• LH Side

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

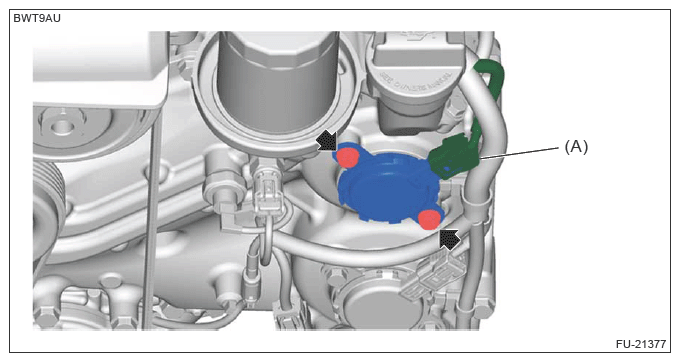

  2. Disconnect the connector (A) and remove the oil control solenoid.
    G13947200Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the backup ring from the oil control solenoid.
