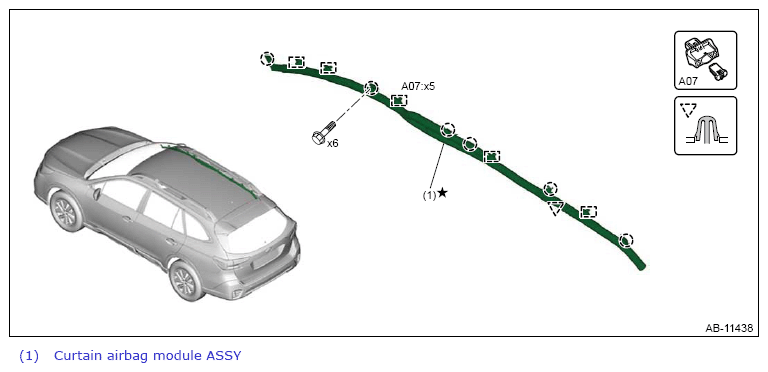

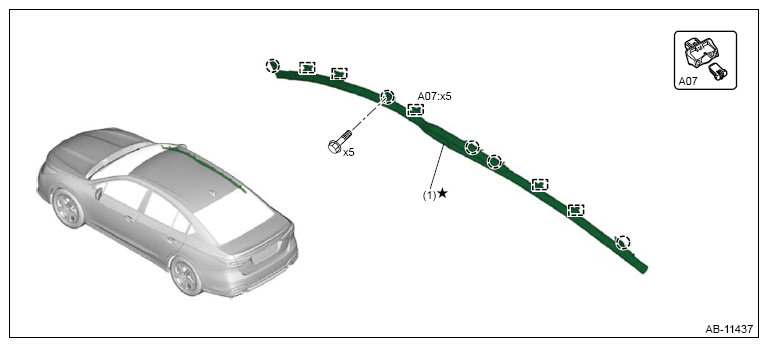

Curtain Airbag Module
CAUTION:
The curtain airbag module cannot be reused if removed from the vehicle once, even if it has not operated yet.
NOTE:
Mounting bolts can be reused.
 Courtesy of SUBARU OF AMERICA, INC.
|
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
