Home >> Subaru >> 2021 >> Outback Base >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag System >> General Description >> Components With Torque Specifications >> Front Impact Sensor

Front Impact Sensor

CAUTION: Do not reuse mounting bolts.

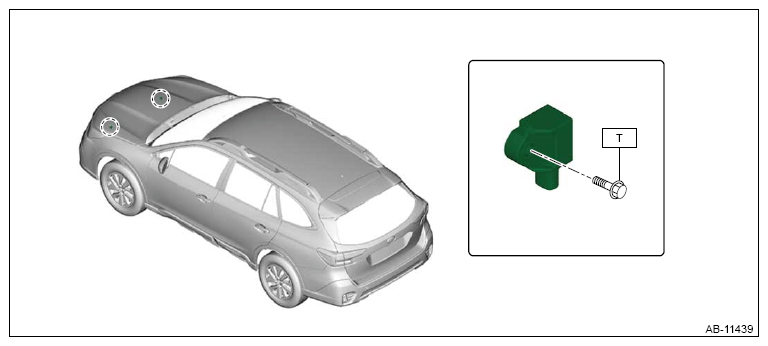

Fig 1: Front Impact Sensor Mounting Bolt

G13951730

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 13 (1.3, 9.6)
