Front Impact Sensor

CAUTION: Refer to "CAUTION" of "General Description" before handling the airbag system components. Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the Front impact sensor.

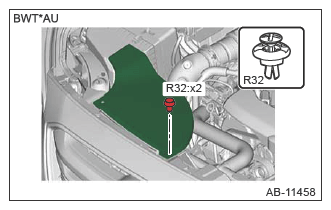

  1. Remove the clips and remove the air intake duct (rear). (When removing the sensor RH)
    G13951799Courtesy of SUBARU OF AMERICA, INC.

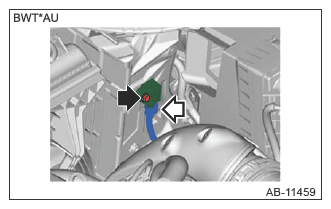

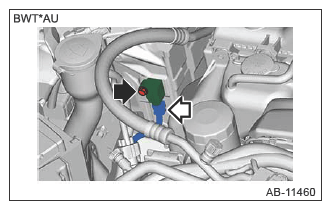

  2. Remove the bolt, and then remove Front impact sensor.
  3. Disconnect the Front impact sensor connector. Ref. to AIRBAG SYSTEM>AIRBAG CONNECTOR>PROCEDURE>EACH IMPACT SENSOR .
G13951800Courtesy of SUBARU OF AMERICA, INC.
G13951801Courtesy of SUBARU OF AMERICA, INC.
