Paddle Shift Switch

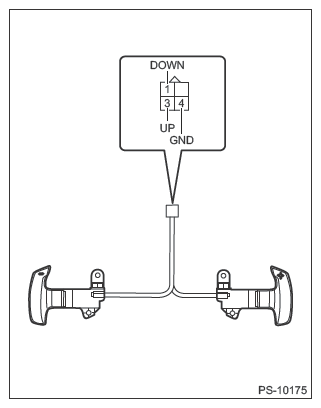

  1. Measure the resistance between connector terminals.
    G13951514Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Inspection conditions Standard
    3 - 4 Operate the + side of paddle shift and hold it. Less than 10 Ω
    1 - 4 Operate the - side of paddle shift and hold it. Less than 10 Ω
    1 - 4
    3 - 4    		 Do not operate the paddle shift. 1 MΩ or more
  2. Replace the paddle shift switch if the inspection result is not within the standard value.
