Steering Wheel: Removal

CAUTION: Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Set the tire to the straight-ahead position.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the driver's airbag module. Ref. to AIRBAG SYSTEM>DRIVER'S AIRBAG MODULE>REMOVAL .
  4. Remove the steering wheel.
    CAUTION:
    • Always use the steering wheel puller for removal to avoid deforming the steering wheel.
    • If the steering wheel has been removed, make sure that the steering roll connector is not turned from the original position.
    1. Disconnect the connector and remove the nut.

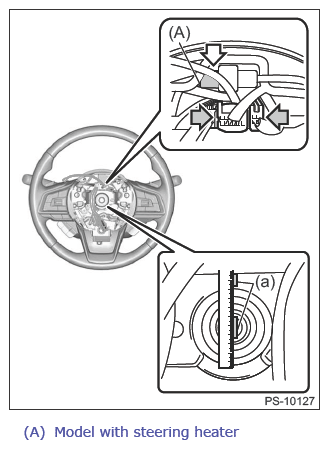

    2. Put an alignment mark (a) using a ruler as shown in the figure.
      G13951506Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the steering wheel using a steering wheel puller.
