Rear Suspension

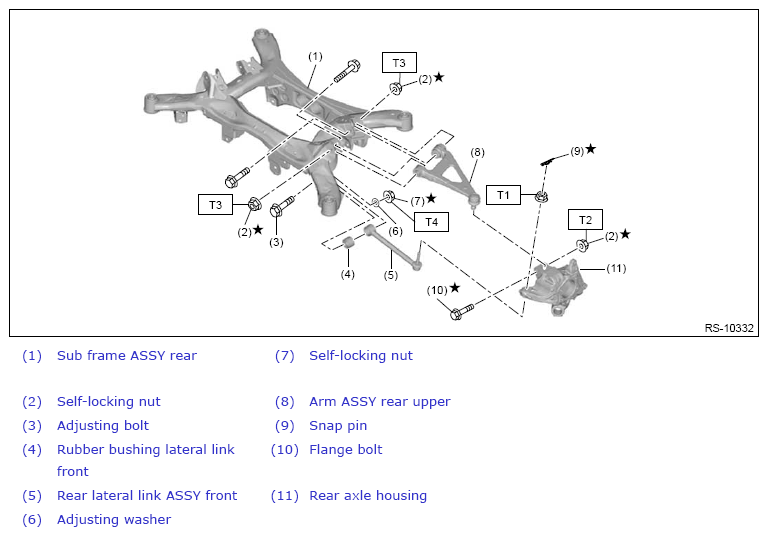

Fig 1: Rear Suspension Components (Sedan Model) (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf.m, ft.lb)

T1: 38 (3.9, 28.0)

T2: 55 (5.6, 40.6)

T3: 70 (7.1, 51.6)

T4: 90 (9.2, 66.4)

T5: 120 (12.2, 88.5)

T6: 145 (14.8, 106.9)

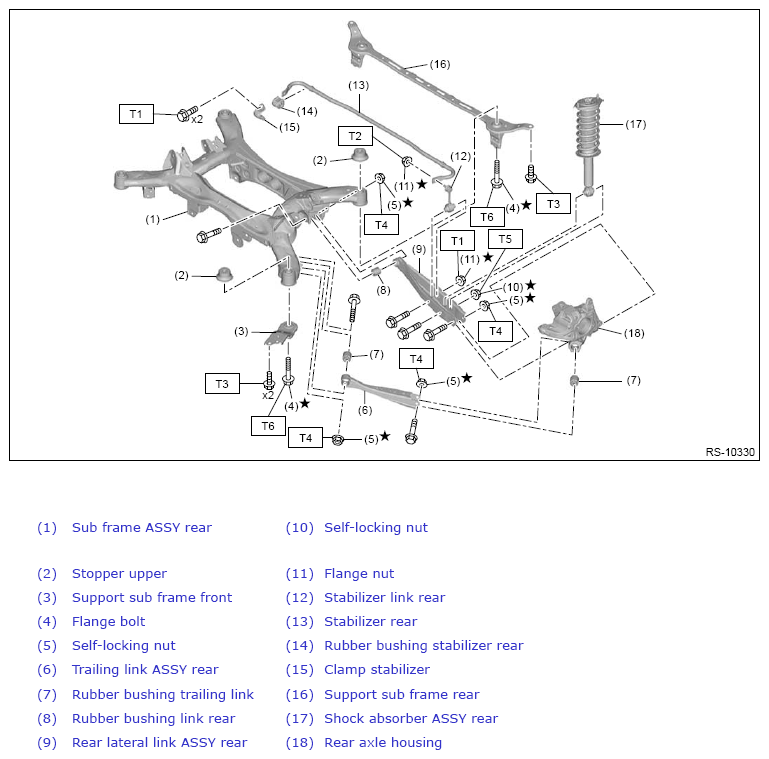

Fig 2: Rear Suspension Components (Sedan Model) (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf.m, ft.lb)

T1: 60 (6.1, 44.3)

T2: 80 (8.2, 59.0)

T3: 90 (9.2, 66.4)

T4: 120 (12.2, 88.5)

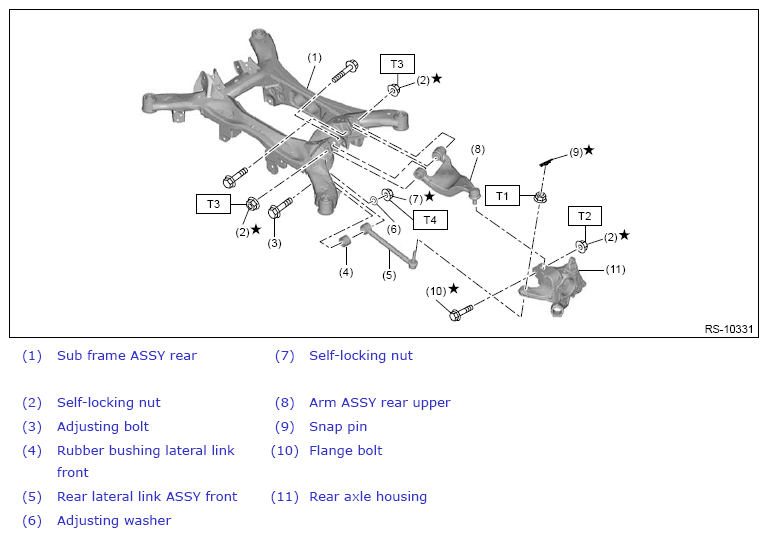

Fig 3: Rear Suspension Components (Outback Model) (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf.m, ft.lb)

T1: 38 (3.9, 28.0)

T2: 55 (5.6, 40.6)

T3: 70 (7.1, 51.6)

T4: 90 (9.2, 66.4)

T5: 120 (12.2, 88.5)

T6: 145 (14.8, 106.9)

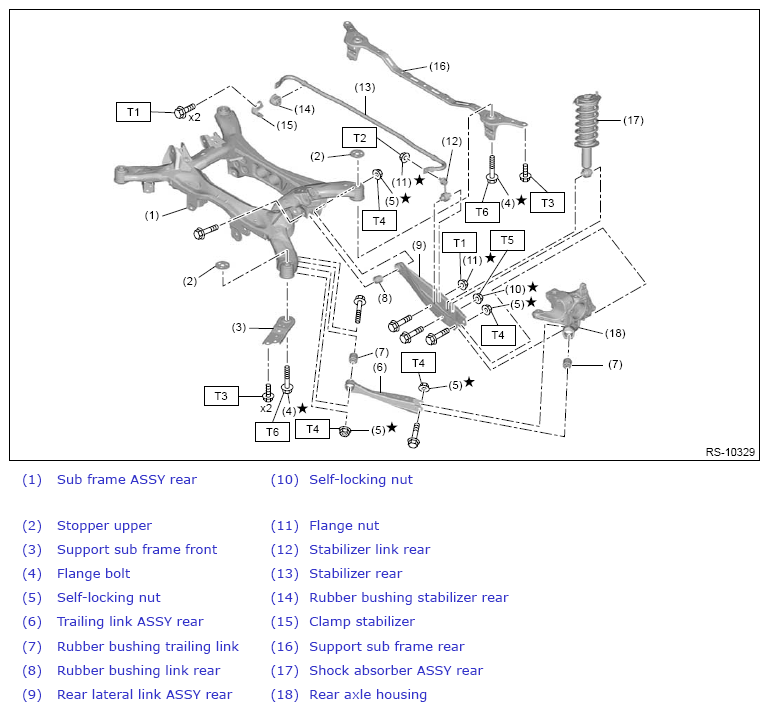

Fig 4: Rear Suspension Components (Outback Model) (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf.m, ft.lb)

T1: 60 (6.1, 44.3)

T2: 80 (8.2, 59.0)

T3: 90 (9.2, 66.4)

T4: 120 (12.2, 88.5)
