Upper Arm: Removal
NOTE:
The procedure shows the OUTBACK model. For the sedan model, perform the procedure by referring to the OUTBACK model.
- Release the parking brake.
- Using the Subaru Select Monitor, perform the brake maintenance mode. Ref. to PARKING BRAKE>PARKING BRAKE SYSTEM>OPERATION>BRAKE MAINTENANCE MODE .
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
- Remove the rear suspension assembly Ref. to REAR SUSPENSION>SUB FRAME>REMOVAL .

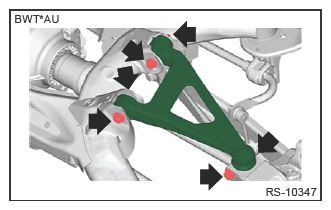

- Remove the arm assembly rear upper.
