Ball Joint: Removal

  1. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  2. Remove the ball joint COMPL.

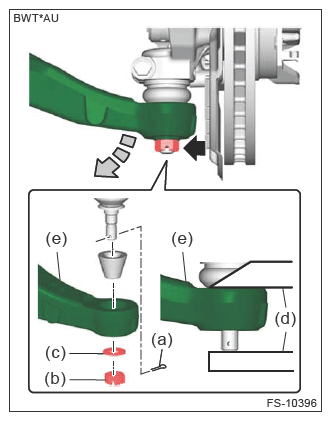

    1. Remove the cotter pin (a).
    2. Remove the castle nut (b) and washer (c).
    3. Use a ball joint puller (d) to detach the arm COMPL front (e).
      G13949552Courtesy of SUBARU OF AMERICA, INC.

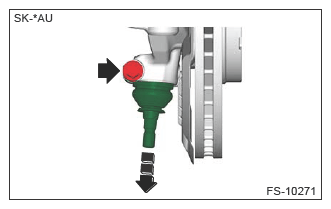

    4. Remove the bolt and pull out the ball joint COMPL.
      G13949553Courtesy of SUBARU OF AMERICA, INC.
