Bushing Rear Front Arm

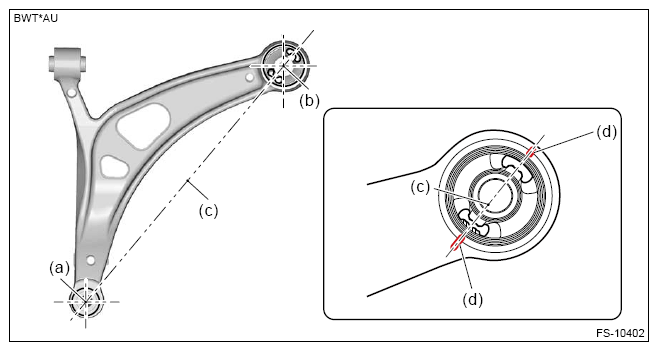

  1. Put alignment marks (d) on the arm COMPL front, based on an extended line (c) connecting the center of ball joint COMPL (a) and the center of busing rear front arm (b).
    G13949564Courtesy of SUBARU OF AMERICA, INC.

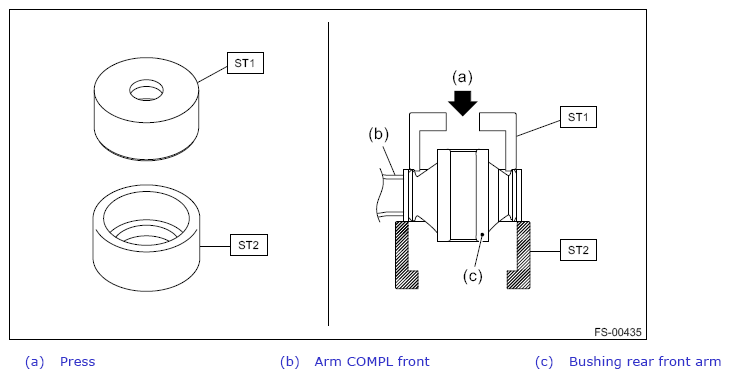

  2. Remove the bushing rear front arm using ST1 and ST2.

    Preparation tool:

    ST1: REMOVER (20299AG000)

    ST2: BASE (20299AG010)

    G13949565Courtesy of SUBARU OF AMERICA, INC.
