Front Arm: Removal

  1. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  2. Remove the crossmember support rear. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>REMOVAL .
  3. Remove the arm COMPL front.

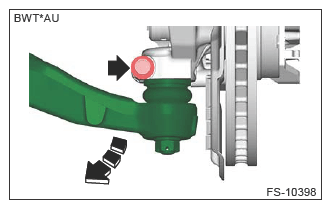

    1. Remove the bolt from the front axle housing.
    2. Lower the arm COMPL front, and remove the ball stud from the front axle housing.
      G13949556Courtesy of SUBARU OF AMERICA, INC.

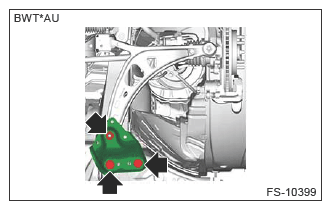

    3. Remove the front arm rear plate.
      G13949557Courtesy of SUBARU OF AMERICA, INC.

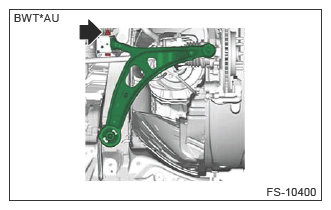

    4. Remove the arm COMPL front.
      G13949558Courtesy of SUBARU OF AMERICA, INC.
