Front Wheel Alignment (Inspection Value)
- Sedan model
Suspension height
(Tolerance: +12 mm-24 mm (+0.47 in-0.94 in ))mm (in) 130 (5.12) Camber (tolerance: ±0°45' Differences between RH and LH: 45' or less) -0°05' Caster (referential value) 5°59' Steering angle (tolerance: ±1.5°) Inner wheel 38.1 ° Outer wheel 32.7 ° Toe-in mm (in) 0±3 (0±0.12)
Toe angle (sum of both wheels): 0° ±15'Kingpin angle (referential value) 13°10' - OUTBACK model
Suspension height
(Tolerance: +12 mm-24 mm (+0.47 in-0.94 in ))mm (in) 59 (2.32) Camber (tolerance: ±0°45' Differences between RH and LH: 45' or less) 0°00' Caster (referential value) 5°25' Steering angle (tolerance: ±1.5°) Inner wheel 38.4 ° Outer wheel 33.6 ° Toe-in mm (in) 0±3 (0±0.12)

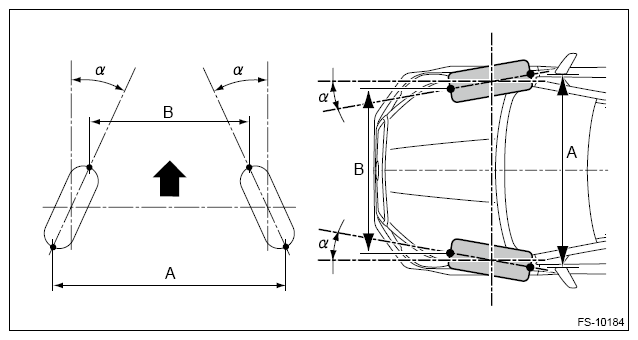

Toe angle (sum of both wheels): 0° ±14'Kingpin angle (referential value) 11°17' A - B = Positive: Toe-in, Negative: Toe-out
α = Individual toe angles
