Drive Pinion: Disassembly

Flatten the tab of the lock nut.

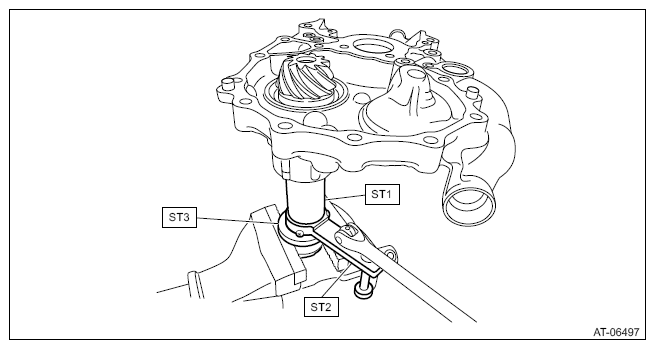

Using ST1, ST2 and ST3, fix the drive pinion and remove the lock nut.
Preparation tool:

ST1: ADAPTER (499787500)

ST2: WRENCH (499787700)

ST3: HOLDER (498937110)

Courtesy of SUBARU OF AMERICA, INC.

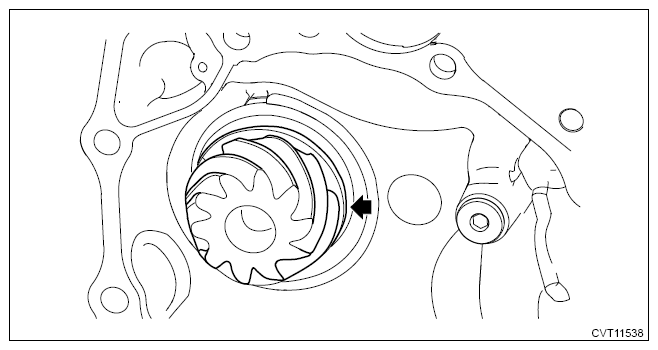

Remove the drive pinion.

Courtesy of SUBARU OF AMERICA, INC.
Remove the taper roller bearing (rear) inner race and the plug using a press and an attachment suitable for the press.

Courtesy of SUBARU OF AMERICA, INC.

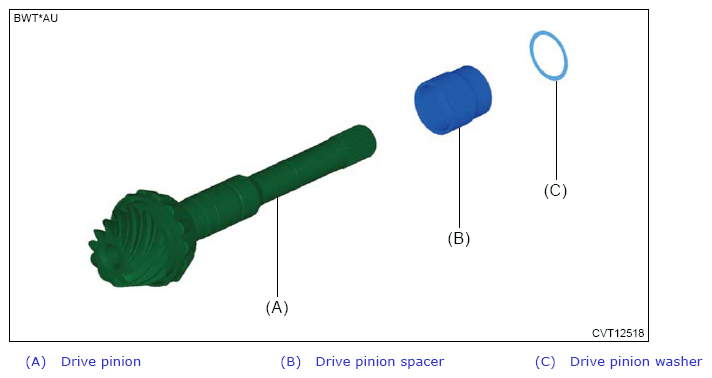

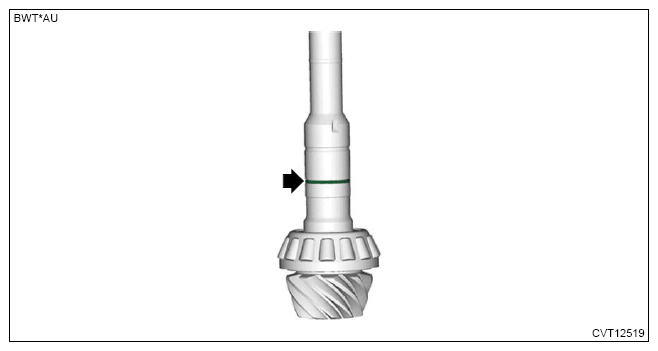

Remove the drive pinion washer and drive pinion spacer.

Courtesy of SUBARU OF AMERICA, INC.
Remove the O-rings.

Courtesy of SUBARU OF AMERICA, INC.

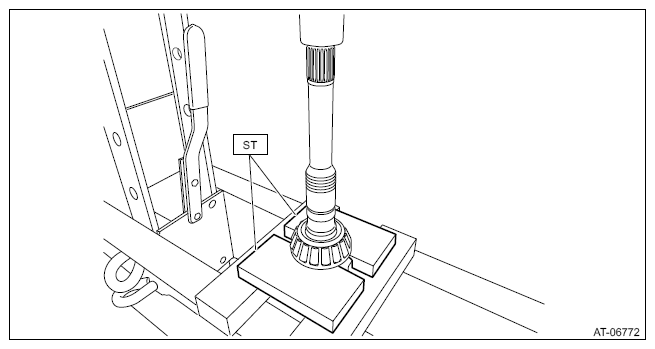

Using the ST and a press, remove the taper roller bearing (front) inner race and the drive pinion shim.
Preparation tool:

ST: REMOVER (498515500)

Courtesy of SUBARU OF AMERICA, INC.

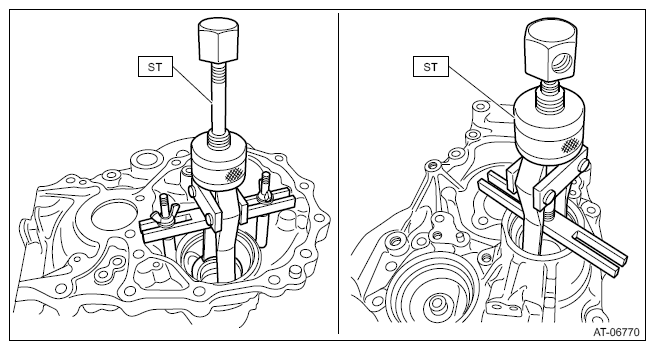

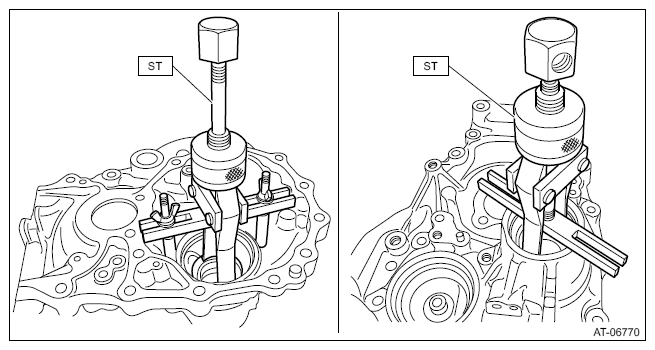

Using the ST, remove the taper roller bearing (front) outer race and the taper roller bearing (rear) outer race.
Preparation tool:

ST: PULLER ASSY (398527700)

Courtesy of SUBARU OF AMERICA, INC.

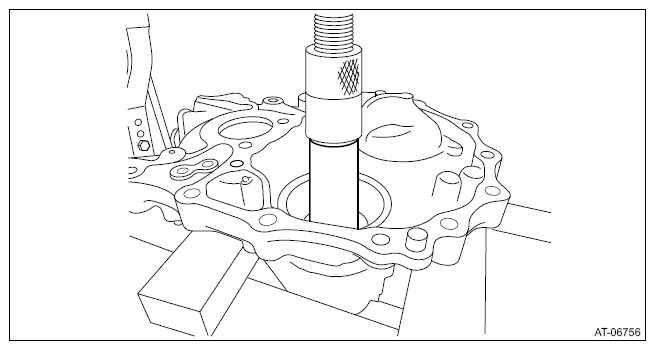

Using the ST, remove the oil seal on the front side and the oil seal on the rear side.
CAUTION: Be careful not to damage the fitting surface of oil seal.

Preparation tool:

ST: PULLER ASSY (398527700)

Courtesy of SUBARU OF AMERICA, INC.

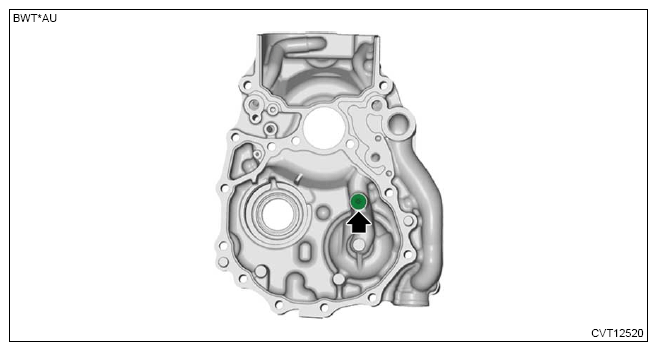

Remove the plug.
