Extension Case: Disassembly

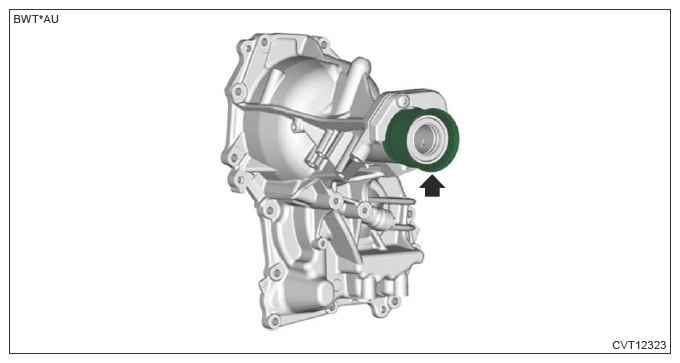

  1. Remove the dust cover.
    G13950598Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the extension case oil seal. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>EXTENSION CASE OIL SEAL>REPLACEMENT .

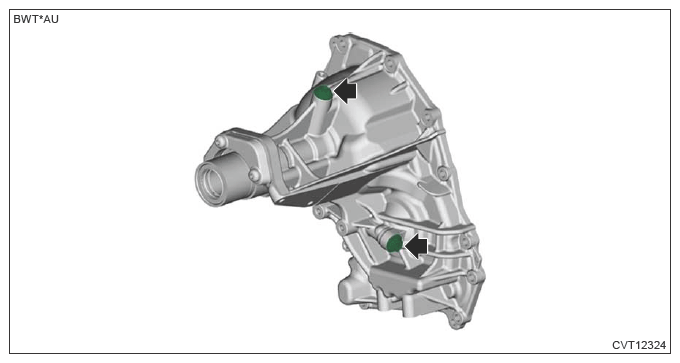

  3. Remove all plugs.
    G13950599Courtesy of SUBARU OF AMERICA, INC.

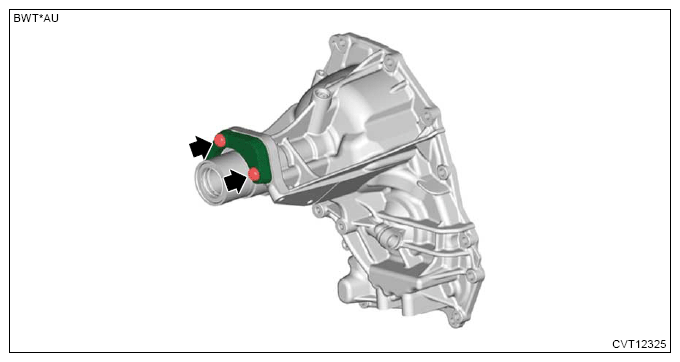

  4. Remove the weight.
    G13950600Courtesy of SUBARU OF AMERICA, INC.
