Oil Pump Chain: Disassembly

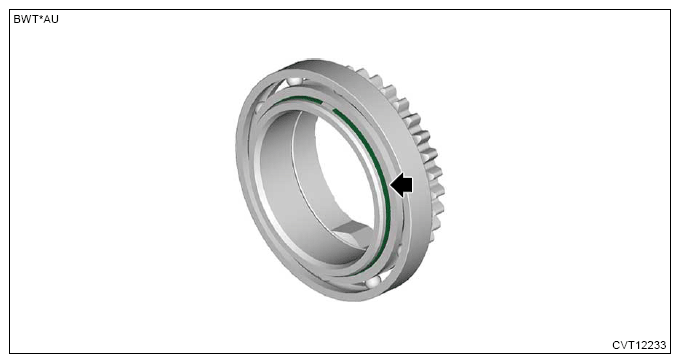

  1. Remove the snap ring.
    G13950560Courtesy of SUBARU OF AMERICA, INC.

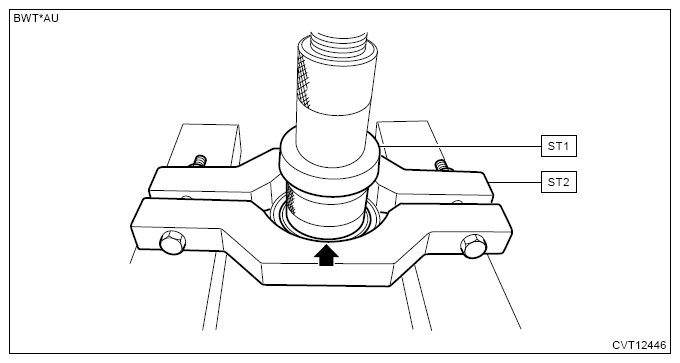

  2. Remove the ball bearing using ST1, ST2 and a press.
    CAUTION: Be careful not to drop the drive sprocket.

    Preparation tool:

    ST1: HOUSING BUSHING INSTALLER AND REMOVER (927720000)

    ST2: REMOVER (498077600)

    G13950561Courtesy of SUBARU OF AMERICA, INC.
