Reverse Brake: Removal

Remove the primary pulley and secondary pulley. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>PRIMARY PULLEY AND SECONDARY PULLEY>REMOVAL .

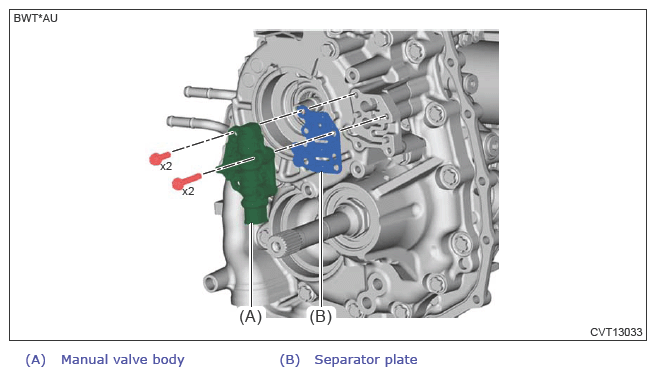

Remove the manual valve body and separator plate.

Courtesy of SUBARU OF AMERICA, INC.

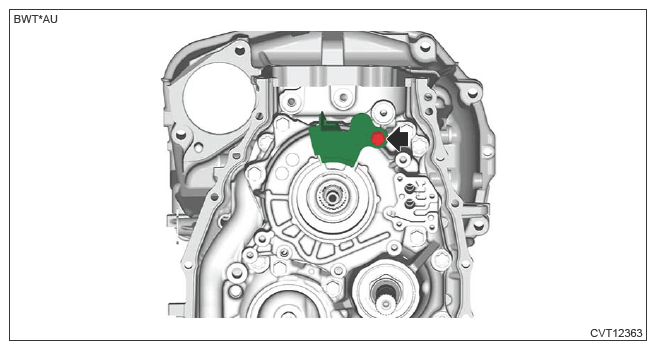

Remove the oil guide.

Courtesy of SUBARU OF AMERICA, INC.

Perform the following measurement, when replacing the reverse brake housing or the drive pinion retainer.

NOTE: It is not necessary when the primary pulley and secondary pulley are replaced.

Measure and record the thickness of primary pulley shim.

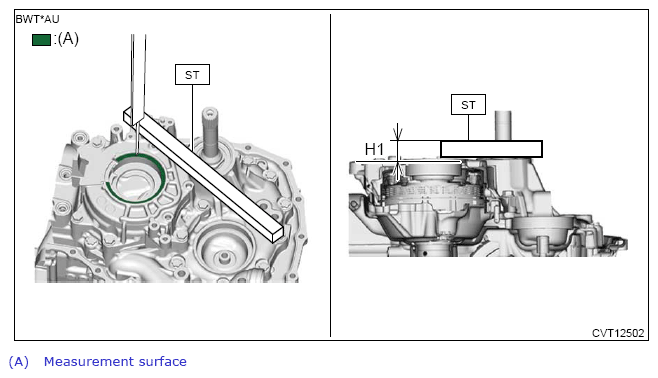

Using the ST, measure the height "H1" from the ST end face to the primary pulley bearing catch surface.

NOTE: Measure at four points and calculate the average.

Preparation tool:

ST: GAUGE (499575400)

Courtesy of SUBARU OF AMERICA, INC.

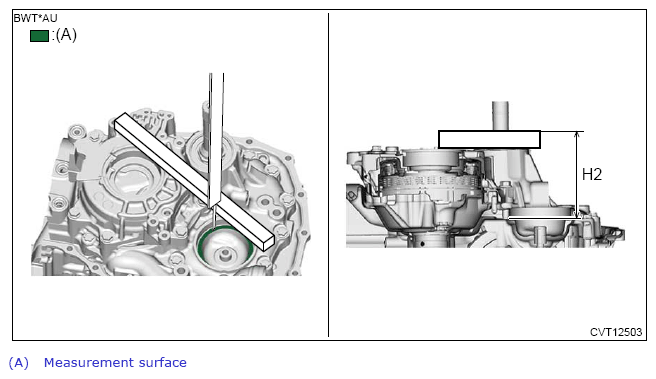

Measure the height "H2" from the ST end face to the secondary pulley bearing catch surface.

NOTE: Measure at four points and calculate the average.

Courtesy of SUBARU OF AMERICA, INC.

Using the following calculation, measure and record the dimension "A" from the primary pulley bearing catch surface to the secondary pulley bearing catch surface.

A = H2 - H1

A	Dimension (mm (in)) from the primary pulley bearing catch surface to the secondary pulley bearing catch surface
H1	Measured value (mm (in)) of step (2)
H2	Measured value (mm (in)) of step (3)

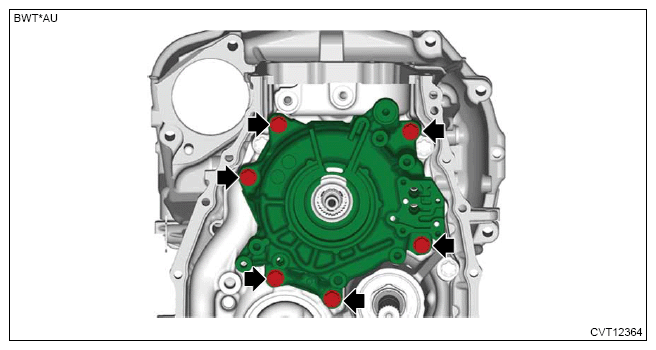

Remove the reverse brake housing.

Courtesy of SUBARU OF AMERICA, INC.

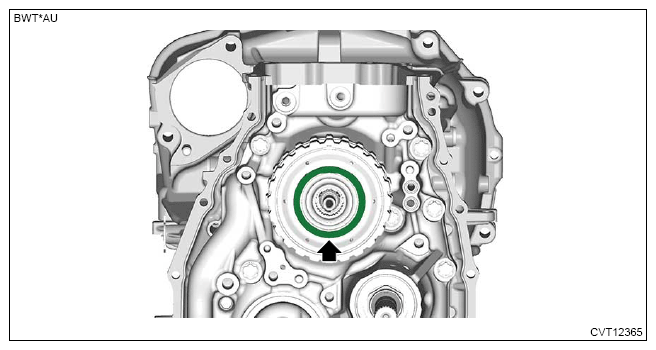

Remove the washer.

Courtesy of SUBARU OF AMERICA, INC.
Remove the thrust bearing.

Courtesy of SUBARU OF AMERICA, INC.

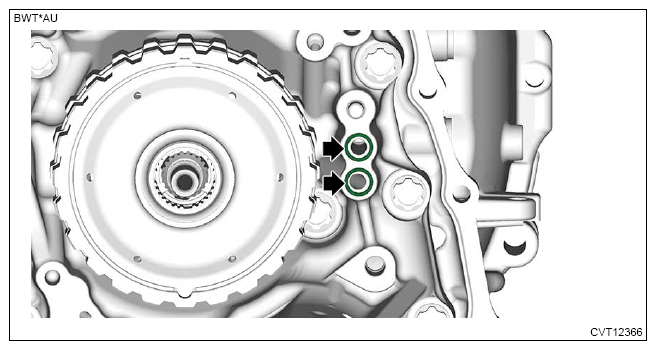

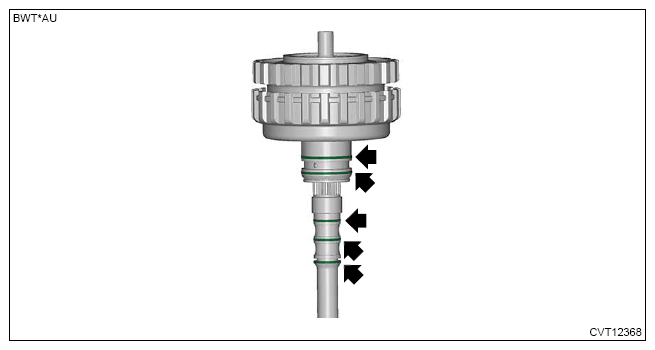

Remove the O-rings.

Courtesy of SUBARU OF AMERICA, INC.

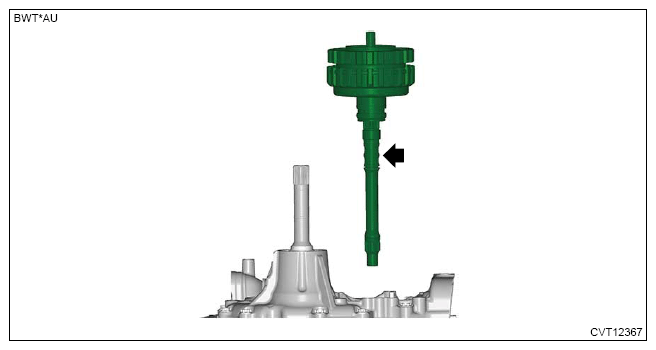

Remove the planetary gear and forward clutch drum as a single unit.

Courtesy of SUBARU OF AMERICA, INC.
Remove the thrust bearing.
NOTE: The thrust bearing may be removed together with the forward clutch drum.

Courtesy of SUBARU OF AMERICA, INC.

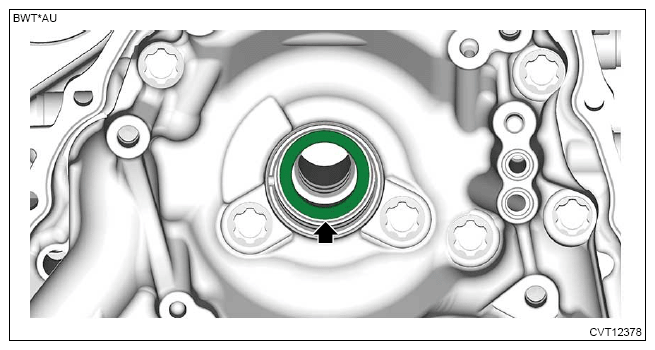

Remove the seal rings.

Courtesy of SUBARU OF AMERICA, INC.
