Torque Converter: Removal

  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSMISSION ASSEMBLY>REMOVAL .

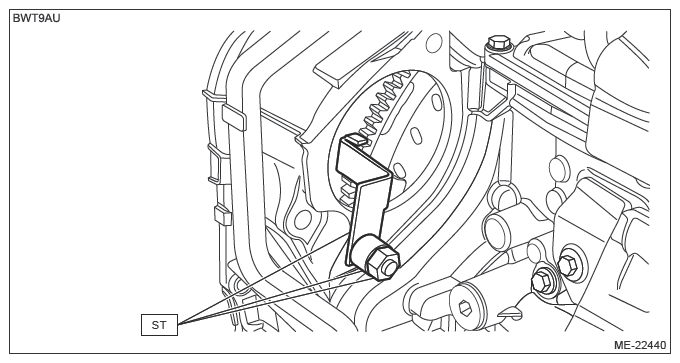

  2. Remove the ST from converter case.
    G13950539Courtesy of SUBARU OF AMERICA, INC.

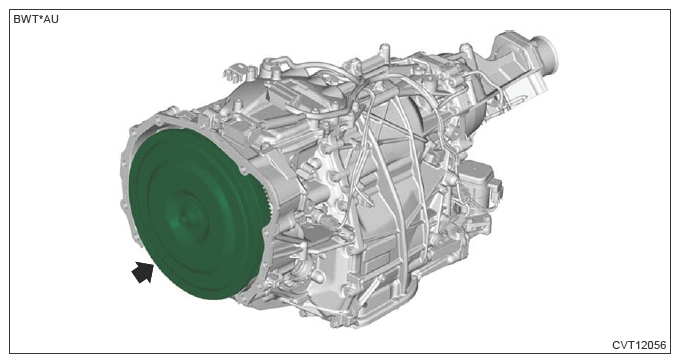

  3. Pull out the torque converter horizontally.
    CAUTION: Be careful not to scratch the inside of engaging parts.
    G13950540Courtesy of SUBARU OF AMERICA, INC.

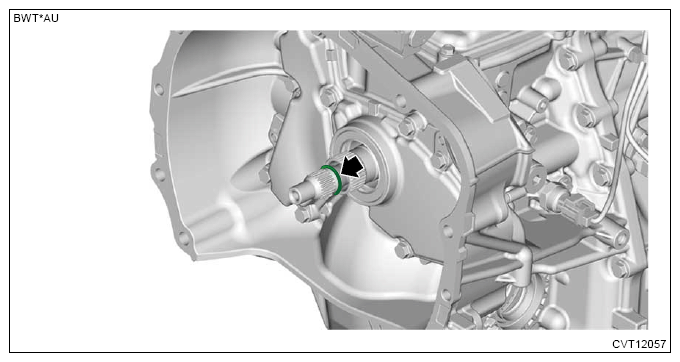

  4. Remove the O-rings.
    G13950541Courtesy of SUBARU OF AMERICA, INC.
