Transfer Clutch: Disassembly

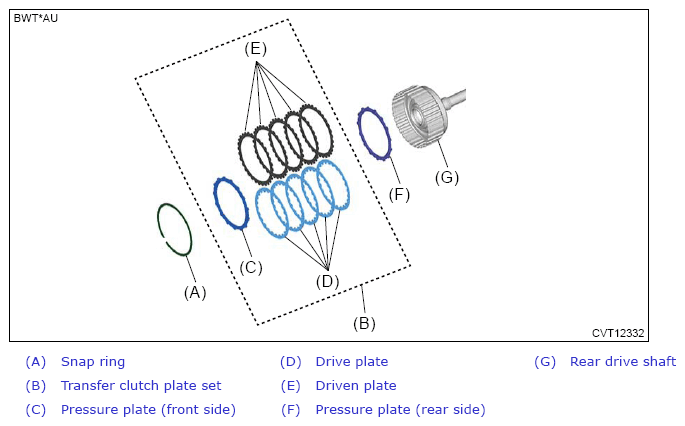

Remove the snap ring, and remove the transfer clutch plate set and pressure plate (rear side).

Courtesy of SUBARU OF AMERICA, INC.

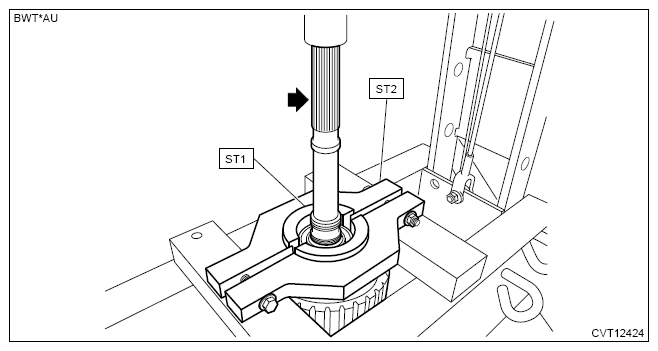

Remove the ball bearing using ST1, ST2 and a press.
CAUTION: Be careful not to drop the rear drive shaft.

Preparation tool:

ST1: BEARING REMOVER (18767AA010)

ST2: REMOVER (18723AA000)

Courtesy of SUBARU OF AMERICA, INC.

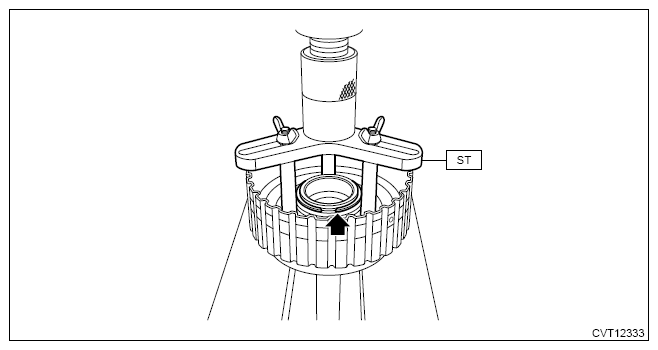

Compress the return spring using the ST and a press to remove the snap ring.
Preparation tool:

ST: COMPRESSOR SPECIAL TOOL (18762AA001)

Courtesy of SUBARU OF AMERICA, INC.

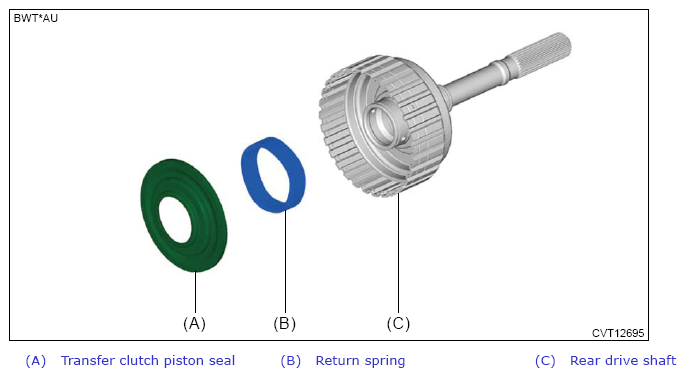

Remove the transfer clutch piston seal, return spring and transfer clutch piston.

Courtesy of SUBARU OF AMERICA, INC.

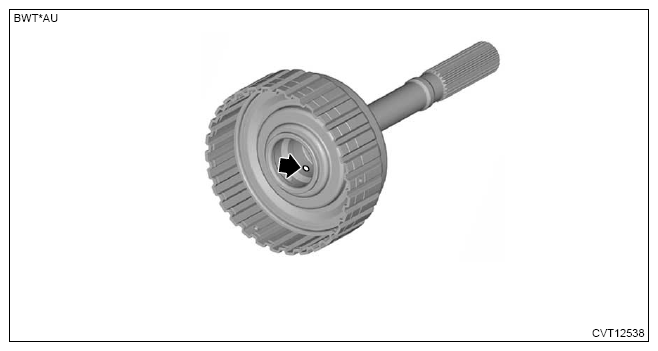

Blow compressed air through the hole shown in the figure, and remove the transfer clutch piston.

Courtesy of SUBARU OF AMERICA, INC.
