Transfer Clutch: Installation

Select the transfer driven gear shim.

Set the rear drive shaft to the extension case.
CAUTION: Be careful not to damage the oil seal of the extension case.

NOTE: Do not install the transfer driven gear shim.

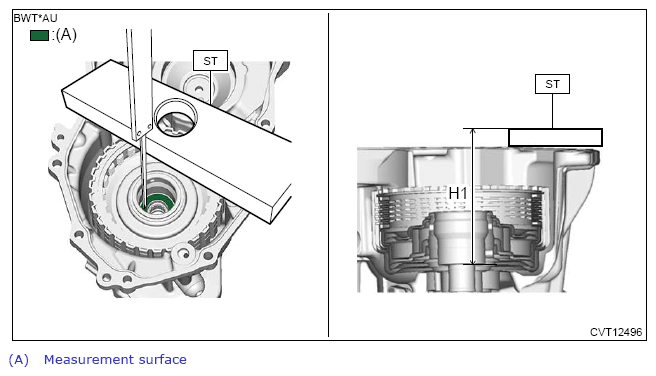

Using the ST, measure the height "H1" from the ST end face to the thrust bearing catch surface.

Preparation tool:

ST: GAUGE (499575600)

Courtesy of SUBARU OF AMERICA, INC.

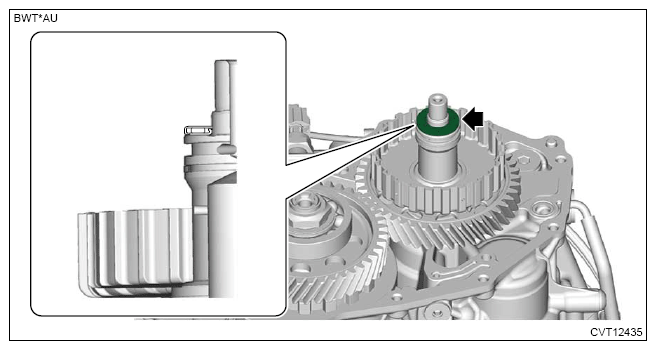

Set the thrust bearing as shown in the figure.

NOTE: Make sure to install in the right direction.

Courtesy of SUBARU OF AMERICA, INC.

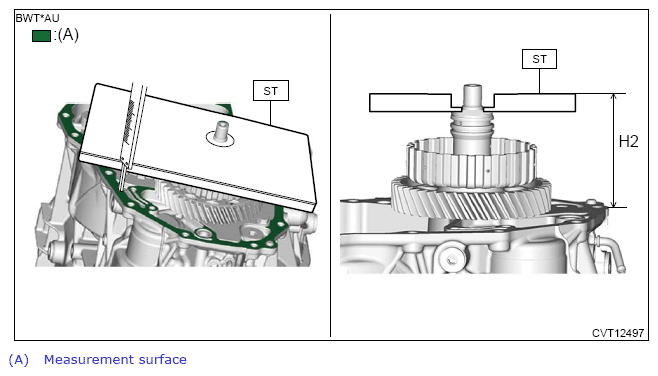

Using the ST, measure the height "H2" from the ST end face to the transmission case mating surface.

Preparation tool:

ST: GAUGE (499575600)

Courtesy of SUBARU OF AMERICA, INC.

Using the following calculation, calculate an appropriate thickness "T" of the transfer driven gear shim.

NOTE: Adjust using 1 - 3 pieces.

T = H1 - H2 - 0.05 - 0.25 mm (0.002 - 0.010 in)

T	Transfer driven gear shim thickness (mm (in))
H1	Measured value (mm (in)) of step (2)
H2	Measured value (mm (in)) of step (4)
0.05 - 0.25 mm (0.002 - 0.010 in)	Clearance specification

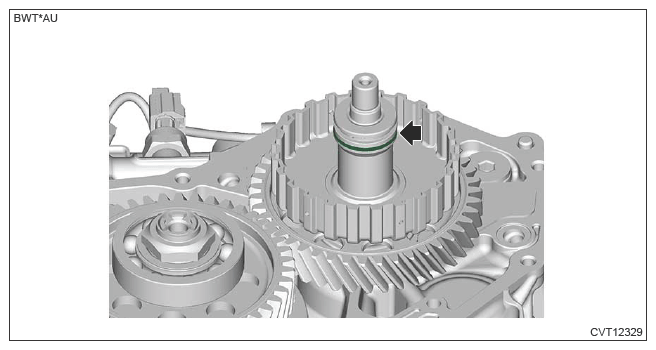

Install a new seal ring.
NOTE:
- Apply CVTF to the seal rings.
- Do not stretch the seal ring more than necessary.
Courtesy of SUBARU OF AMERICA, INC.

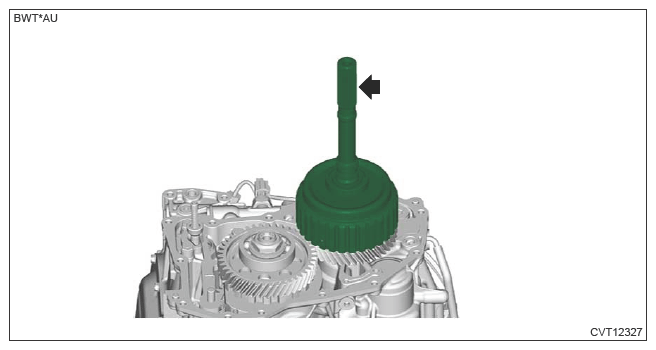

Install the rear drive shaft.

Courtesy of SUBARU OF AMERICA, INC.
Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>EXTENSION CASE>INSTALLATION .
