Front Differential: Installation

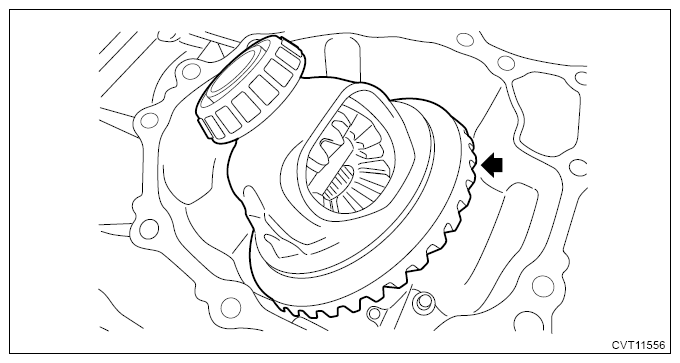

Set the differential case.
CAUTION: Be careful not to damage the attachment section of the differential side retainer.

Courtesy of SUBARU OF AMERICA, INC.

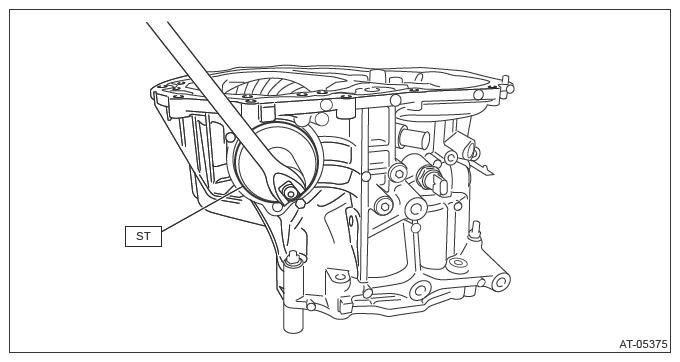

Temporarily install the differential side retainers using the ST.
NOTE:
- Install the O-ring after checking and adjusting the tooth contact of hypoid gear set.
- When there is no replacement of the side bearing inner race, do not confuse the left side and right side.
Preparation tool:

ST: WRENCH COMPL RETAINER (18658AA021)

Courtesy of SUBARU OF AMERICA, INC.
Install the drive pinion. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DRIVE PINION>INSTALLATION .
