Intermediate Case: Assembly

Install the reverse brake. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REVERSE BRAKE>ASSEMBLY .

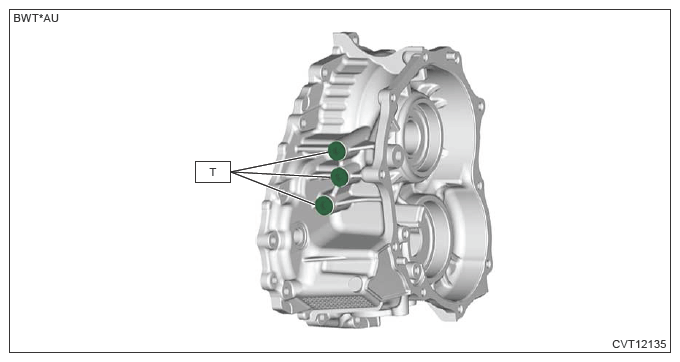

Install the plugs with new O-rings.
NOTE: Apply CVTF to the O-rings.

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Fig 1: Plugs (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.

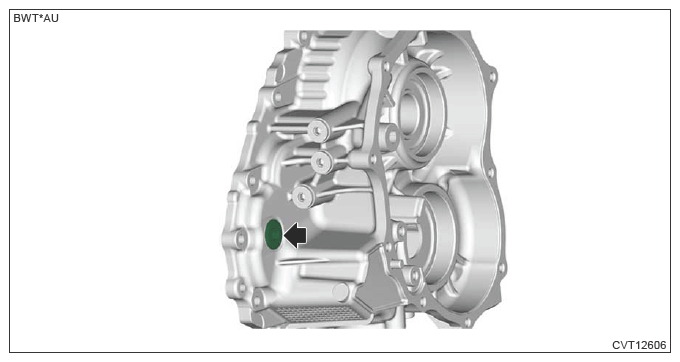

Temporarily install the filler plug.
NOTE: Replace the filler plug gasket with a new part after adjusting the level of CVTF.

Courtesy of SUBARU OF AMERICA, INC.

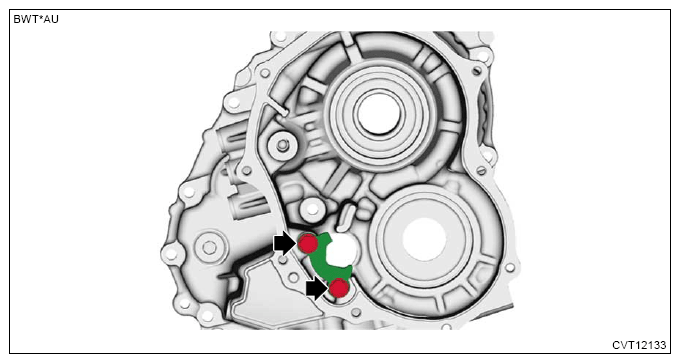

Install the parking support.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
