Transmission Control Device: Removal

1. Remove the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>PARKING PAWL>REMOVAL .
2. Remove the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>INHIBITOR SWITCH>REMOVAL .
3. Remove the oil pan. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>OIL PAN>REMOVAL .

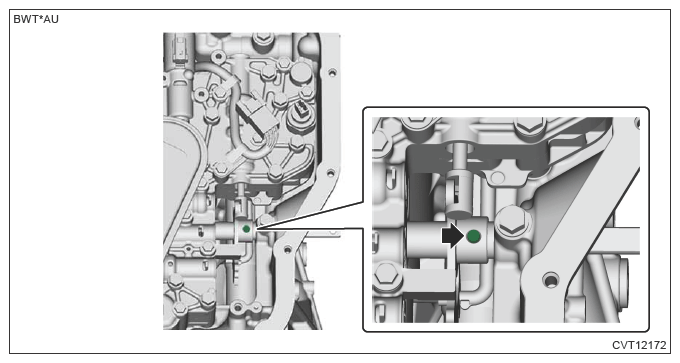

4. Remove the spring pin.
   NOTE: Be careful not to drop the spring pin in the transmission.

   Courtesy of SUBARU OF AMERICA, INC.

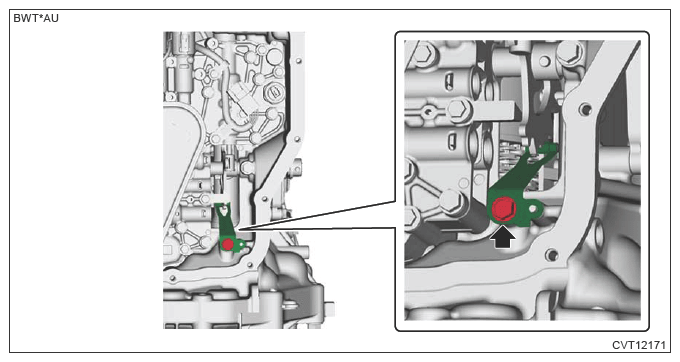

5. Remove the detent spring.

   Courtesy of SUBARU OF AMERICA, INC.

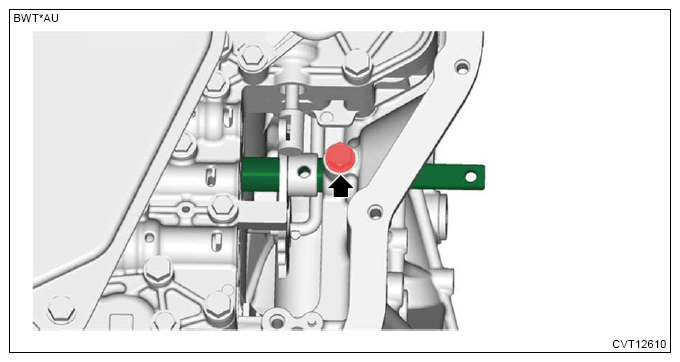

6. Remove the shifter arm shaft.

   Courtesy of SUBARU OF AMERICA, INC.

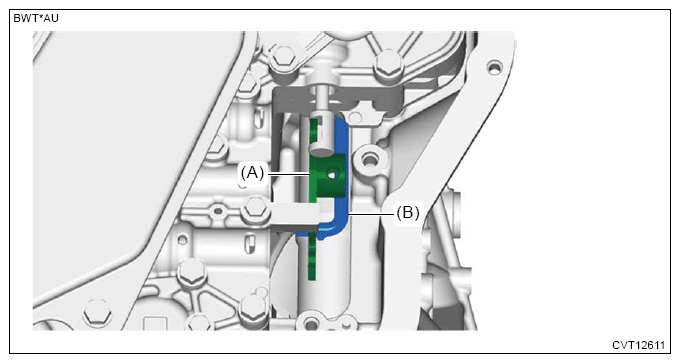

7. Remove the manual plate (A) and parking rod (B) as a single unit.

   Courtesy of SUBARU OF AMERICA, INC.

8. Remove the parking rod from the manual plate.

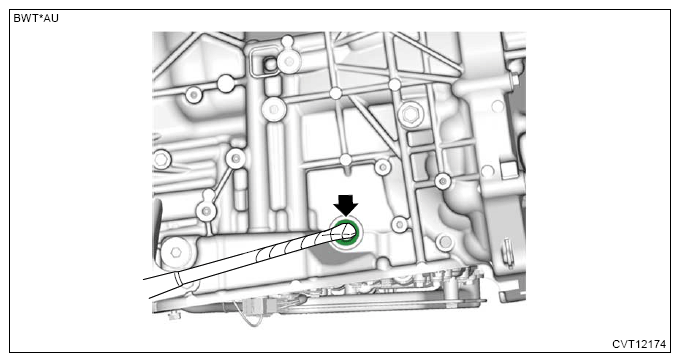

9. Remove the oil seal using a flat tip screwdriver wrapped with protection tape.

Courtesy of SUBARU OF AMERICA, INC.
