Entertainment System: Camera: Removal: Front

  1. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the bumper face - front. Refer to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL .

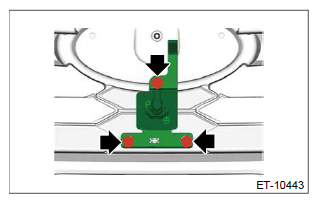

  3. Remove the screws and remove the front view camera.
    CAUTION: Do not drop or apply any impact to the front view camera because it is a precision equipment.
    G12455958Courtesy of SUBARU OF AMERICA, INC.
