Outer Mirror Assembly: Disassembly

CAUTION:

When removing the mirror - repair, be careful not to damage the back surface of mirror - repair with a flat tip screwdriver.
When installing the mirror - repair, insert the connector and clip securely.

Operate the remote control mirror switch to face the mirror - repair upward.
Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.

Remove the mirror - repair.

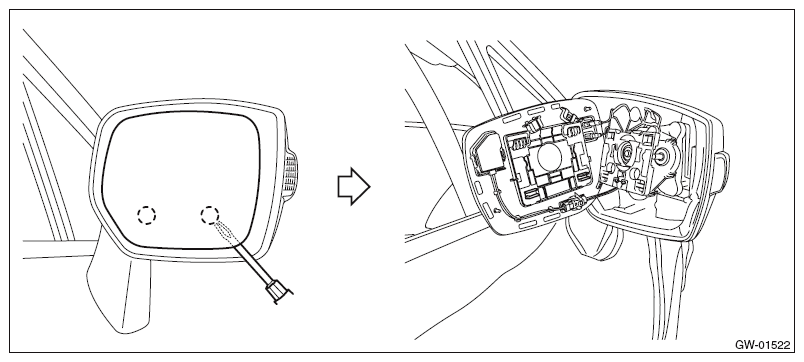

Using a flat tip screwdriver or similar tool, release the engagement shown in the figure, and slide the mirror - repair downward to remove.

Courtesy of SUBARU OF AMERICA, INC.

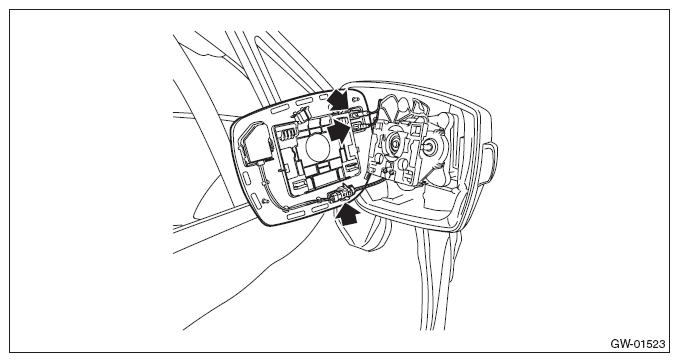

Disconnect connectors. (Model with mirror heater and Blind Spot Detection/Rear Cross Traffic Alert system)

Courtesy of SUBARU OF AMERICA, INC.

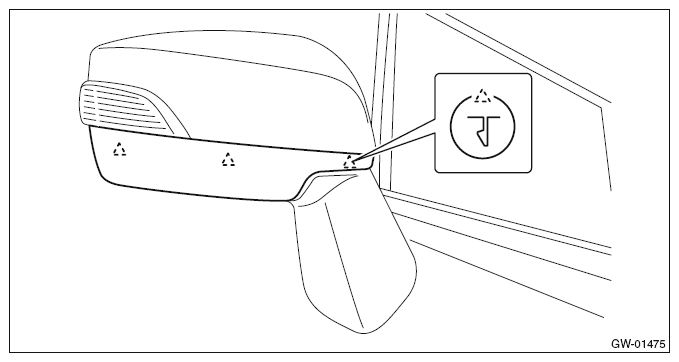

Release the claws, and then remove the cover - cap outer mirror lower.

Courtesy of SUBARU OF AMERICA, INC.

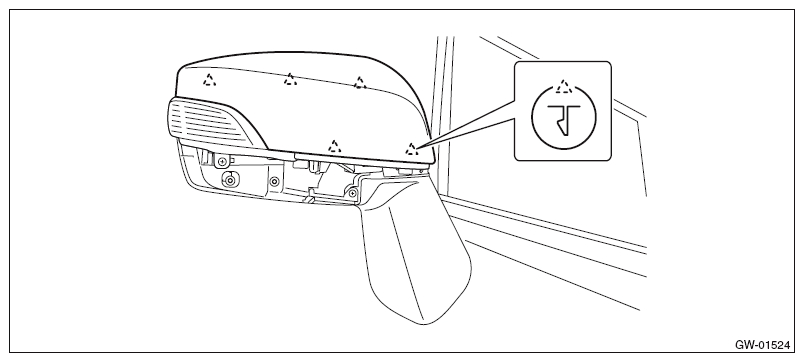

Release the claws, and then remove the cover - cap outer mirror.
CAUTION: Be careful not to apply excessive force when removing the cover - cap outer mirror, as the lower hooks may become damaged.

Courtesy of SUBARU OF AMERICA, INC.

Remove the light assembly - side turn mirror. (Model with side turn signal light)

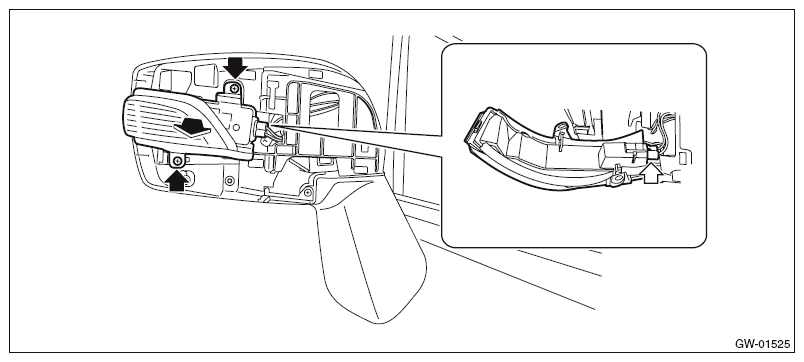

Remove the screws and pull out the light assembly - side turn mirror to the front of the vehicle.

Disconnect the connector and remove the light assembly - side turn mirror.

Courtesy of SUBARU OF AMERICA, INC.
