Engine Starting System & Charging System (2.0L): Generator: Disassembly

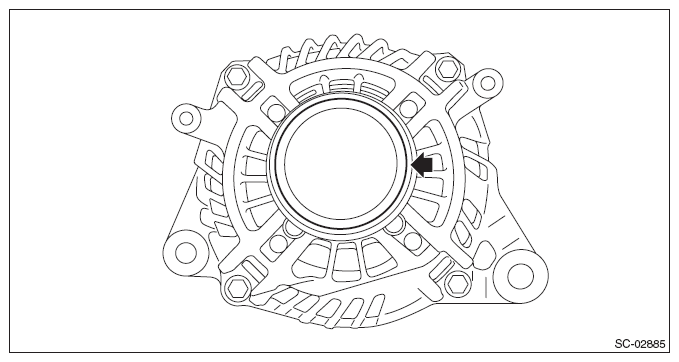

1. Remove the cap from the generator.

   Courtesy of SUBARU OF AMERICA, INC.

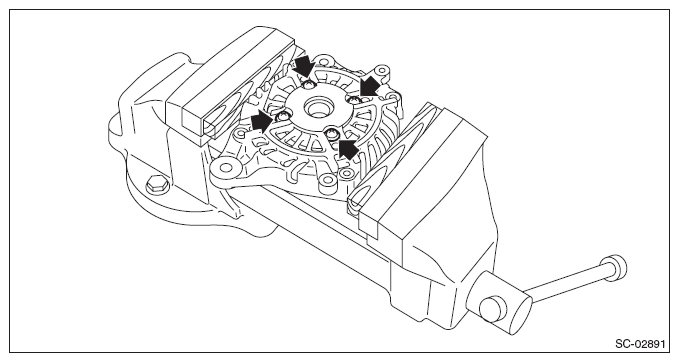

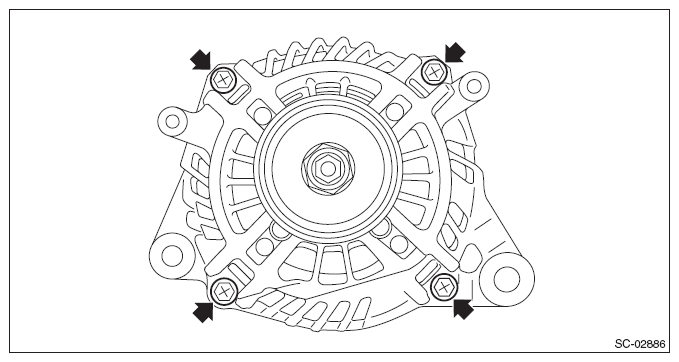

2. Remove the four through bolts.

   Courtesy of SUBARU OF AMERICA, INC.

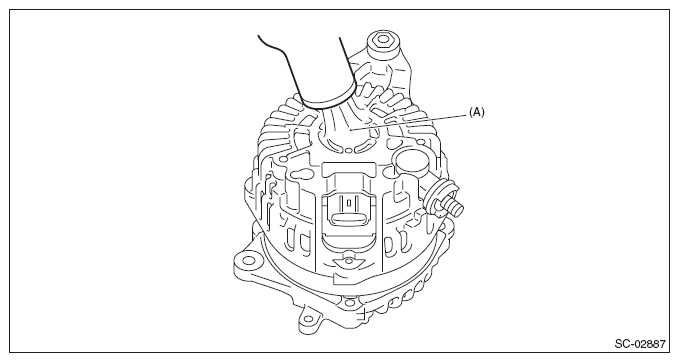

3. Use a drier to heat the rear cover (A) portion to 50 - 60°C (122 - 140°F).

   Courtesy of SUBARU OF AMERICA, INC.

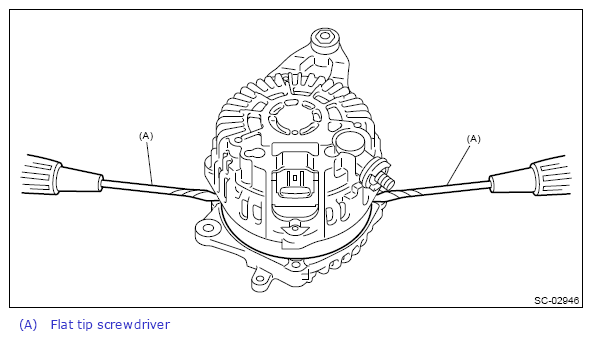

4. Insert a flat tip screwdriver or similar tool wrapped with protective tape into the gap between stator core and the front cover to disassemble.

   Courtesy of SUBARU OF AMERICA, INC.

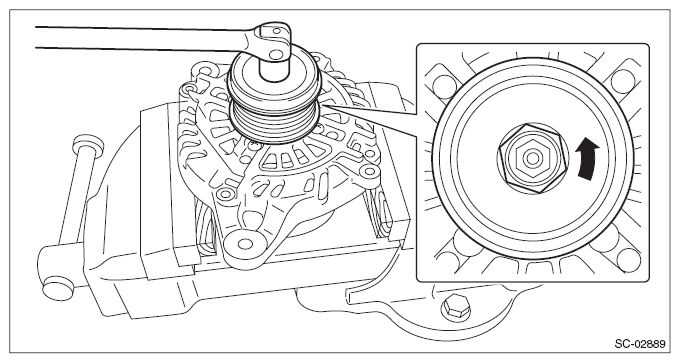

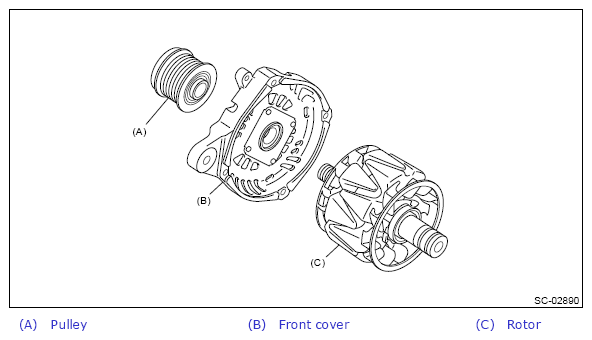

5. Hold the rotor on a vise and remove the pulley.
   CAUTION: When holding the rotor with a vise, place aluminum plates or wooden pieces on the vise jaws to prevent rotor from damage.

   Courtesy of SUBARU OF AMERICA, INC.

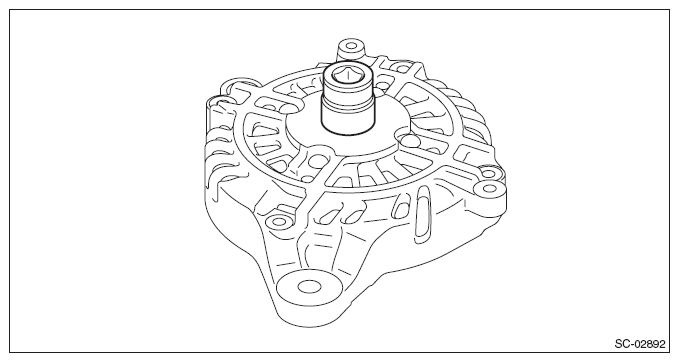

6. Remove the rotor from the front cover.

   Courtesy of SUBARU OF AMERICA, INC.

7. Use the following procedures to remove the ball bearings.
   1. Remove the bolt, and then detach the bearing retainer.

      Courtesy of SUBARU OF AMERICA, INC.

   2. Firmly attach an appropriate tool (such as a correct size socket wrench) to the bearing inner race.

      Courtesy of SUBARU OF AMERICA, INC.

   3. Use the press to push the ball bearings out from the front cover.

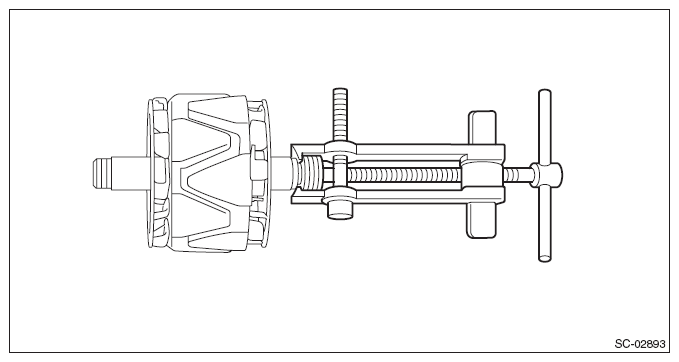

8. Using the bearing puller, remove the bearings from the rotor.

   Courtesy of SUBARU OF AMERICA, INC.

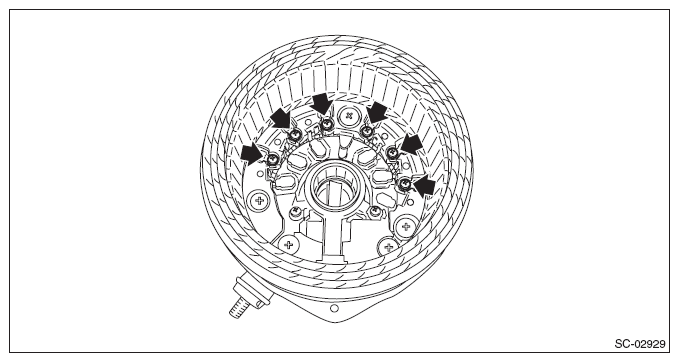

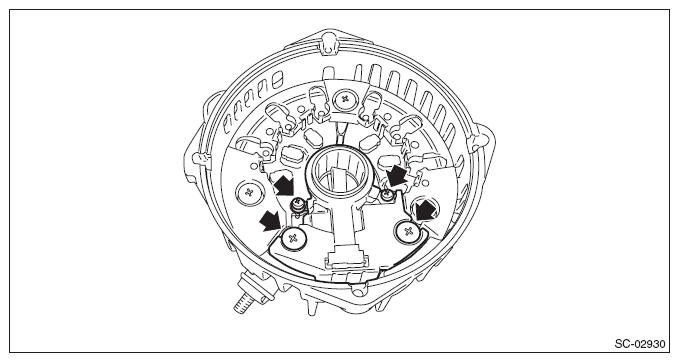

9. Remove six bolts which connect the rectifier and stator coil, then remove the stator coil.

   Courtesy of SUBARU OF AMERICA, INC.

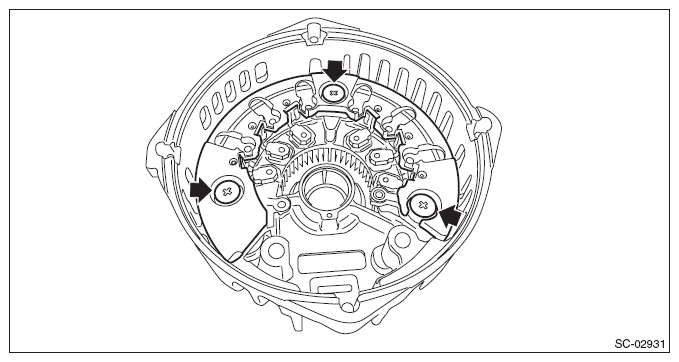

10. Remove four screws which secure the IC regulator to the rear cover, then remove the IC regulator.

    Courtesy of SUBARU OF AMERICA, INC.

11. Use the following procedures to remove the brush.

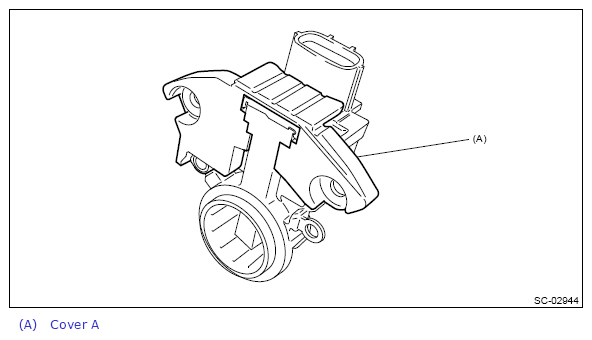

    1. Remove the cover A.

       Courtesy of SUBARU OF AMERICA, INC.

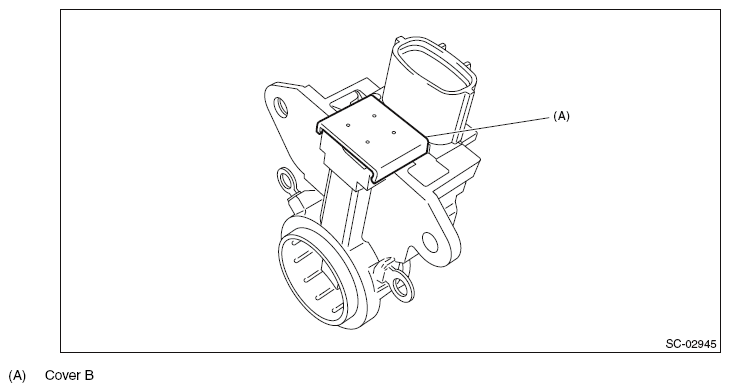

    2. Remove the cover B.

       Courtesy of SUBARU OF AMERICA, INC.

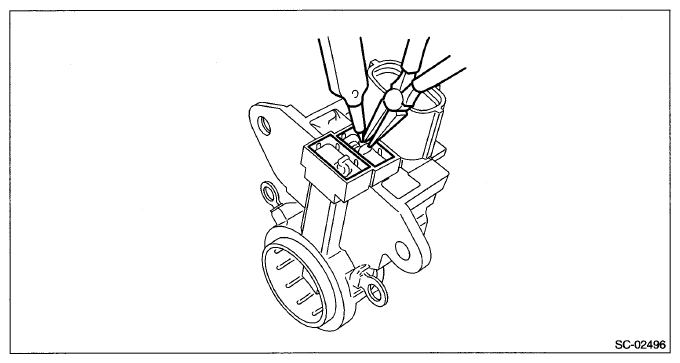

    3. Disconnect the connection and remove the brush.

    Courtesy of SUBARU OF AMERICA, INC.

12. Remove the rectifier as follows.

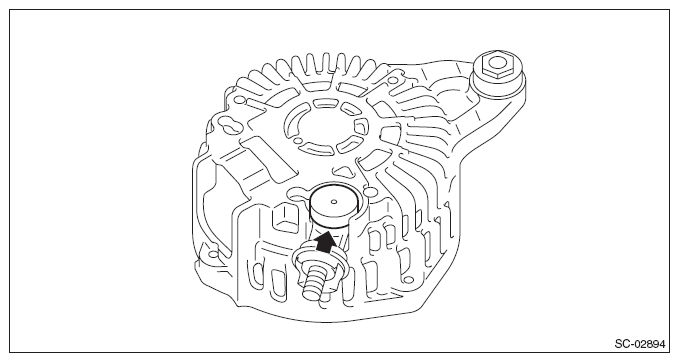

    1. Remove the cover on terminal B.

       Courtesy of SUBARU OF AMERICA, INC.

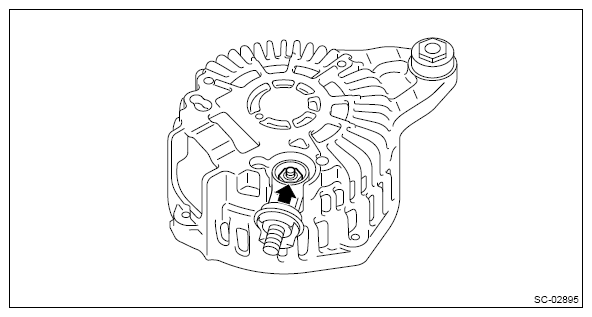

    2. Remove the nut on terminal B.

       Courtesy of SUBARU OF AMERICA, INC.

    3. Remove the bolts which secure the rectifier, and remove the rectifier.

Courtesy of SUBARU OF AMERICA, INC.
