Engine Starting System & Charging System (2.0L): Generator: Removal

1. Remove the collector cover. Refer to INTAKE (INDUCTION) (W/O STI)>COLLECTOR COVER>REMOVAL .
2. Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
3. Remove the brake vacuum pump. Refer to BRAKE>BRAKE VACUUM PUMP>REMOVAL .
4. Remove the V-belts. Refer to MECHANICAL(W/O STI)>V-BELT>REMOVAL>V-BELT .
5. Remove the collector cover bracket.

   Courtesy of SUBARU OF AMERICA, INC.

6. Disconnect the connector (A) and terminal (B) from the generator.

   Courtesy of SUBARU OF AMERICA, INC.

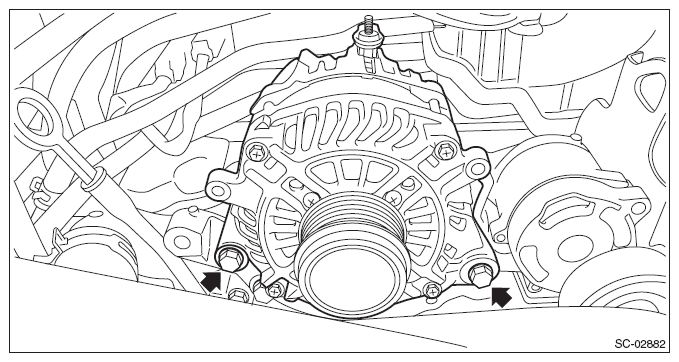

7. Remove the generator from the generator bracket.

   Courtesy of SUBARU OF AMERICA, INC.

8. Remove the V-belt tensioner assembly. Refer to MECHANICAL(W/O STI)>V-BELT>REMOVAL>V-BELT TENSIONER ASSY .

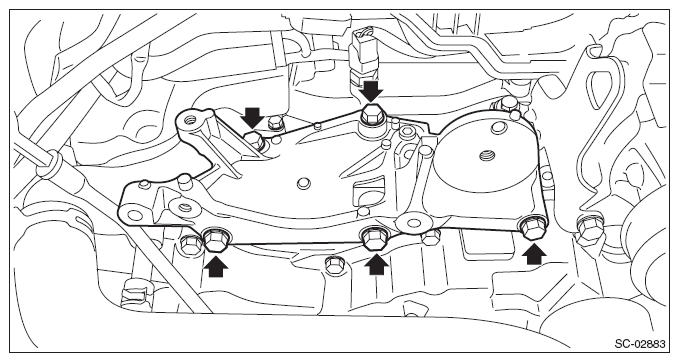

9. Remove the generator bracket from the engine.

Courtesy of SUBARU OF AMERICA, INC.
