Horn System: Horn: Inspection

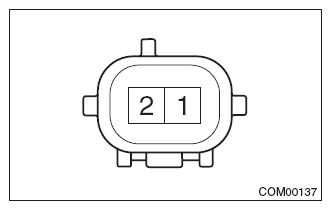

  1. Check that the horn assembly sounds when applying the battery voltage to each connector terminal.
    G10270827Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Inspection conditions Specification
    Terminal 1 (+) - Terminal 2 (-) Connect battery to the terminals Sounds
  2. If it does not operate normally, replace the horn assembly.
