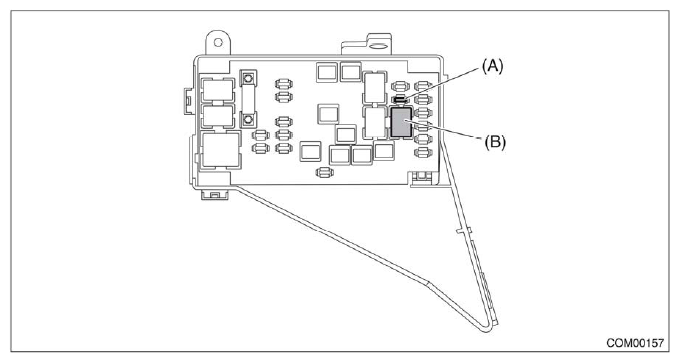

Relay and Fuse: Location
| Main fuse box | Fuse 15 A (horn assembly - Hi, Lo) | (A) |
| Horn relay | (B) |
NOTE:
For other related fuses, refer to the wiring diagram. Refer to WIRING SYSTEM>POWER SUPPLY CIRCUIT
.
| Main fuse box | Fuse 15 A (horn assembly - Hi, Lo) | (A) |
| Horn relay | (B) |
