Exhaust Side

  1. Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
  2. Remove the under cover. Refer to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  3. Disconnect the connector (A) from the camshaft position sensor, and remove the camshaft position sensor from the chain cover.

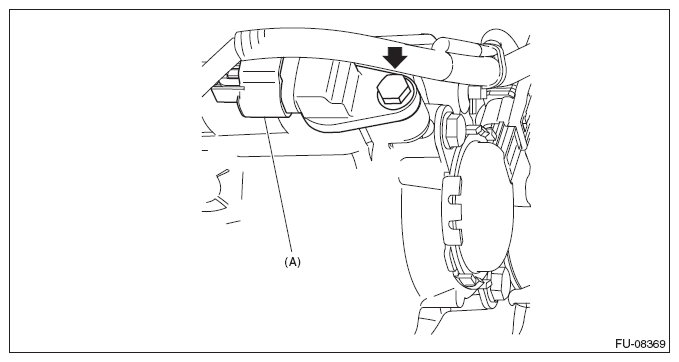

    • RH side
      G10266213Courtesy of SUBARU OF AMERICA, INC.

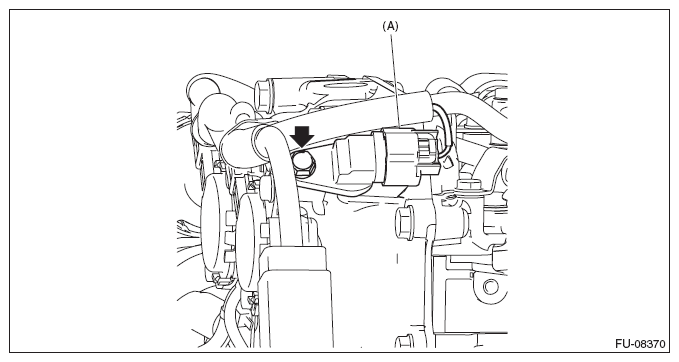

    • LH side
    G10266214Courtesy of SUBARU OF AMERICA, INC.
